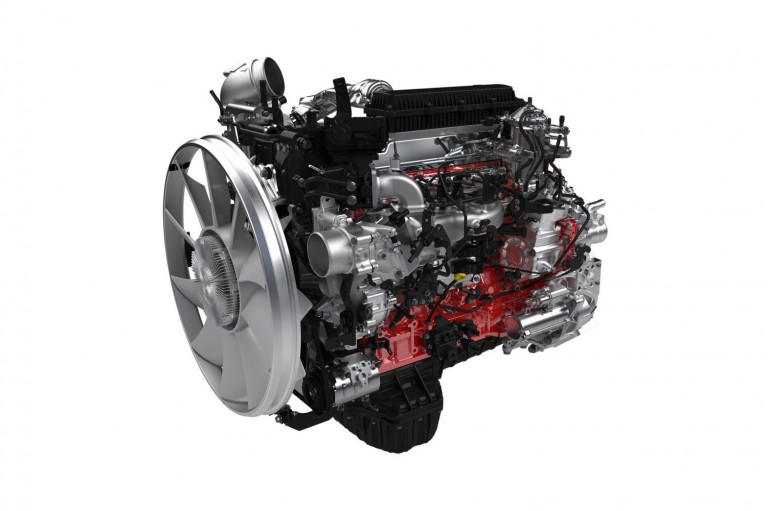

Hino Motors Canada Ltd - A09 Diesel Engines

The HINO A09 series diesel engine was developed based on an engine for Hino heavy duty trucks and buses. This engine is also mounted on the Hino Dakar Rally race truck.  The industrial use version is to be developed in future.


Key Specifications
Displacement 8.866 L
Bore x Stroke 112 × 150 mm
Cylinders 6
Characteristics 4 cycle, Water-cooled, Vertical in-line
Rated output 265 kW (360 ps) / 1,800 rpm
Maximum torque N・m (kg・m) / rpm 1,569 Nm / 1,100 rpm
Dry Weight 953 kg
