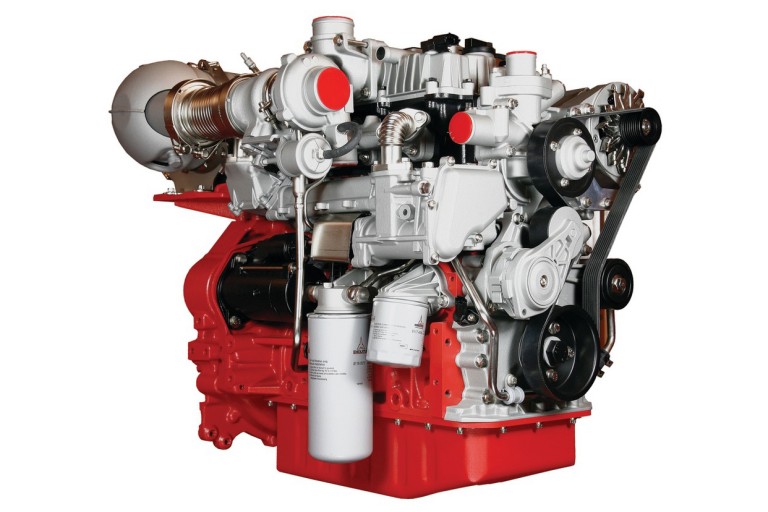

DEUTZ Corporation - TCD 2.9 L4 HP Diesel Engines

Water-cooled 4-cylinder inline engine with cooled, external exhaust gas recirculation with and without turbocharging and optionally with and without charge air cooling. The powerful Common Rail injection system and highly-efficient combustion process with cooled external exhaust gas recirculation ensure optimum engine performance at low fuel consumption and exhaust emissions.

The DVERT®oxidation catalyst for EU Stage IIIB and US EPA Tier 4 enables maintenance-free operation under all application and ambient conditions. A DVERT® particulate filter (DPF) is available as an option. With the introduction of EU Stage V, DPF will be available for all engine types. Through the use of the diesel particulate filter, the engines already comply with the EU Stage V emissions standard expected from 2019.


Key Specifications
Emission norms EU V, US T4f, EU IV
Number of Cylinders 4
Bore 92 mm (3.6 in)
Stroke 110 mm (4.3 in)
Displacement 2.9 L (177 cu in)
Maximum nominal speed 2300 rpm
Power output 75 kW (101 hp)
