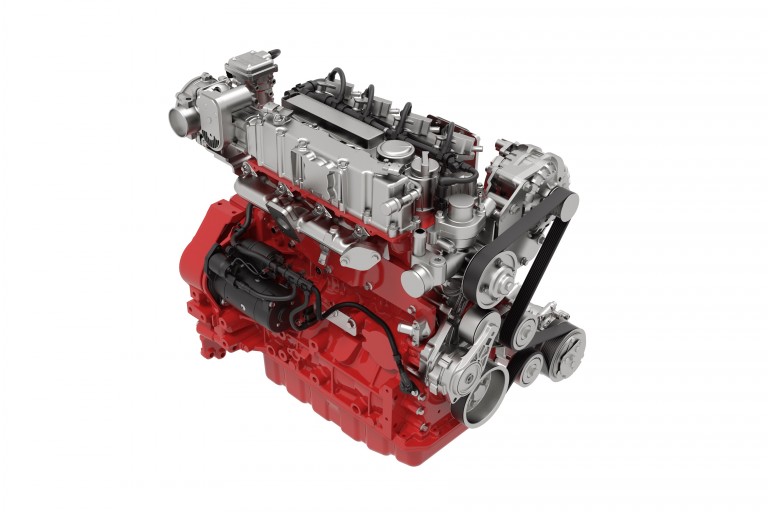

TCD 13.5 Diesel Engines

Engine and exhaust aftertreatment (EAT) are optimized for highest total system efficiency and thus ensure lowest consumption and total operating cost. Thanks to SCR technology, the cooler sizes do not need to be enlarged in comparison with Tier 3 engines. Fuel consumption is reduced (applicable for Stage IIIB and IV). Consistent installation and connection dimensions of the engine facilitate the changeover of existing installations to the next stage of the emission laws.

Specs

Key Specifications
Emission norms EU V, US T4f, EU IV
Number of cylinders 6
Power output 450 kW
Maximum nominal speed 1900 rpm
Bore 135 mm
Stroke 157 mm
Displacement 13.5 l
