DEUTZ Corporation

TCD 16.0

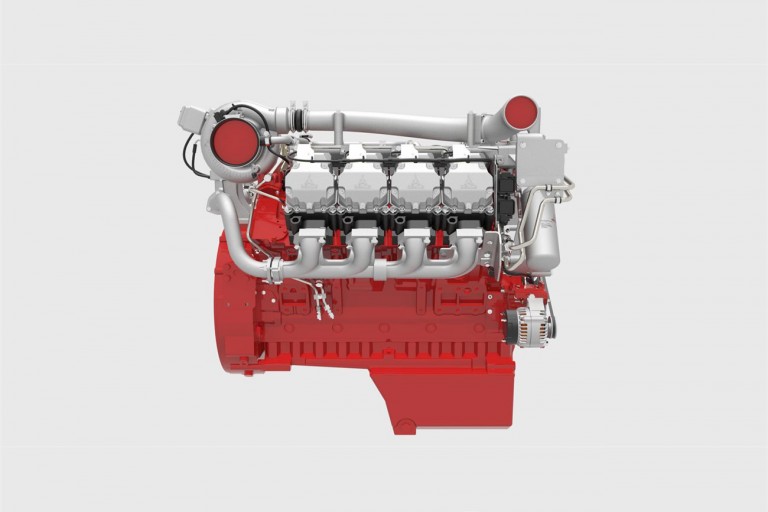

Water-cooled, V version (90°) 8-cylinder engine


TCD 16.0

Water-cooled, V version (90°) 8-cylinder engine with turbocharging and charge air cooling. Engine and exhaust aftertreatment (EAT) are optimised for highest total system efficiency and thus ensure lowest consumption and total operating cost.
Thanks to SCR technology, the cooler sizes do not need to be enlarged in comparison with Tier 3 engines. Fuel consumption is reduced. (applicable for Stage IIIB and IV)
Consistent installation and connection dimensions of the engine facilitate the changeover of existing installations to the next stage of the emission laws.
The engines have a modular exhaust aftertreatment system (EAT) with components from the DVERT® kit and optional configuration variants. This means a high flexibility in machine integration for the OEM.

VIEW FULL PROFILE

Specs

Key Specifications
Emission norms EU V, US T4f, EU IV
Number of cylinders 8
Bore 132 mm
Stroke 145 mm
Displacement 15.9 l
Maximum nominal speed 2100 rpm
Power output 520 kW
