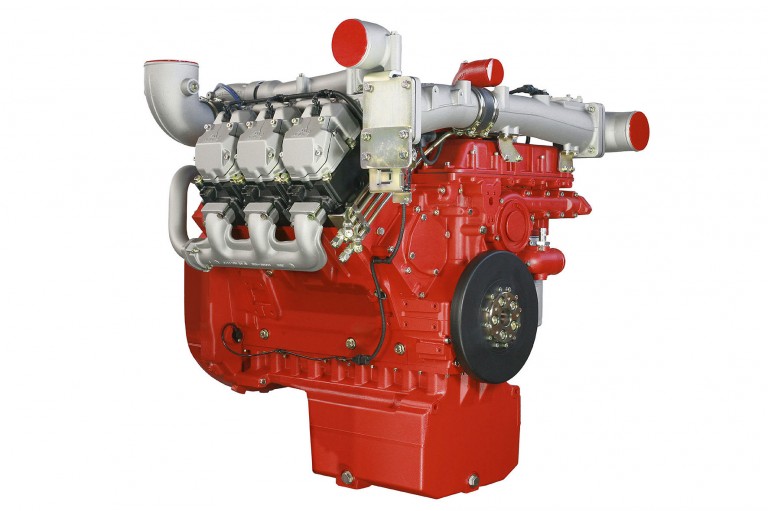

DEUTZ Corporation - TCD 12.0 Diesel Engines

Water-cooled, V version (90°) 6 or 8- cylinder engines with turbocharging and charge air cooling.  Engine and exhaust aftertreatment (EAT) are optimized for highest total system efficiency and thus ensure lowest consumption and total operating cost.

Thanks to SCR technology, the cooler sizes do not need to be enlarged in comparison with Tier 3 engines. Fuel consumption (applicable for Stage IIIB and IV) is reduced. Consistent installation and connection dimensions of the engine facilitate the changeover of existing installations to the next stage of the emission laws.

Specs

Key Specifications
Power 240-520 kW / 322-697 hp at 1800-2100 min-1/rpm
Emission standards EU Stage IIIB, IV, V / US EPA Tier 4i + 4
No. of cylinders 6-8
Bore/stroke 132/145 mm | 5,2"/5,7"
Max. Torque 2130 Nm | 1571 lb/ft. - 2890 Nm | 2132 lb/ft.
