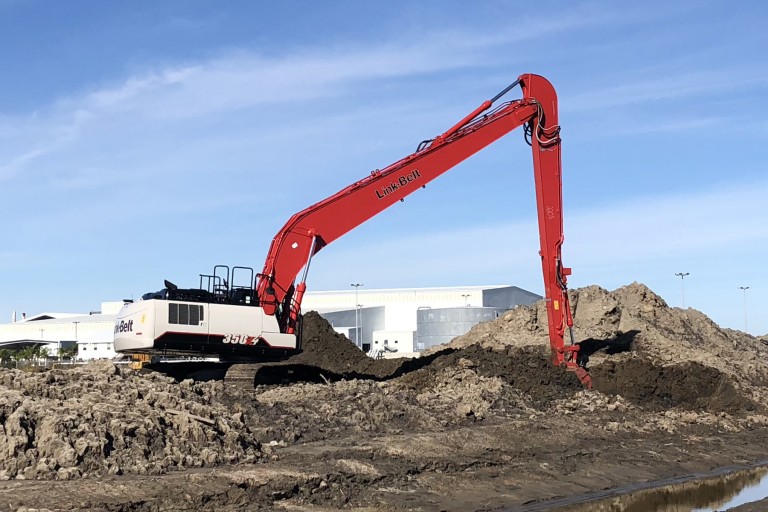

Link-Belt Construction Equipment Company - 350 X4 Long Front Excavators

X4 machines offer greater digging power, increased lift capacities, faster cycle times and better fuel economy. A straightforward, two-step after-treatment process provides 100% Final Tier 4 compliance across all models, with no costly DPF to worry about!


Key Specifications
Operating Weight 39.75 metric tons (87,634 lbs)
Max dig depth 46' 3" ft/in
Reach at ground level 60' 10" ft/in
Arm Force 15,290 lbf
Bucket digging force 29,000 lbf
Bucket capacity, SAE heaped, min-max 0.65 - 1.33 cu yds
