TC16 Excavators

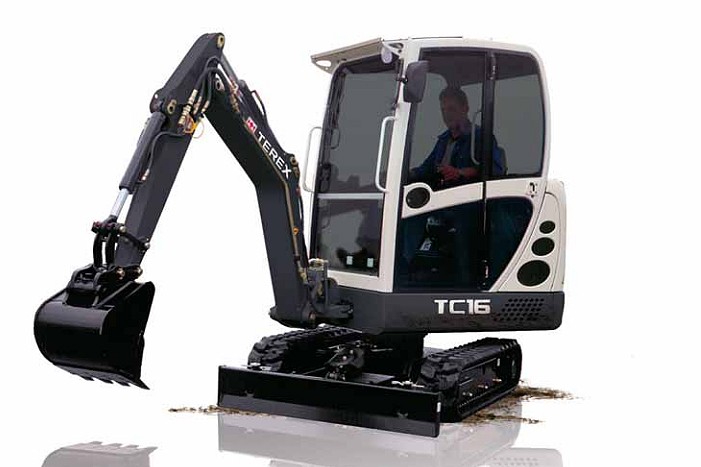

The 18-hp Terex® TC16 compact crawler excavator is compact and reliable. It is able to tackle a wide range of jobs, from trenching and drainage work to loading and site preparation. The adjustable Knickmatik® boom system on the TC16 excavator allows operators to work closely alongside walls or other existing infrastructure, as well as drive parallel to a trench or drain while working on it without turning the superstructure. In addition, this unit’s top-mounted neck cylinders are designed to provide additional clearance for the operator to load large, high-walled trucks and containers while protecting them from damage. End-position cushioning on this unit’s hydraulic cylinders reduces vibrations and allows operators to work comfortably.

Specs

Key Specifications
Operating weight 1,725 kg (3,800 lbs)
Engine power 13.1 kW (18 hp)
Bucket capacity 0.75-3.2 ft³
Max dig depth 2,200 mm (7' 3")
