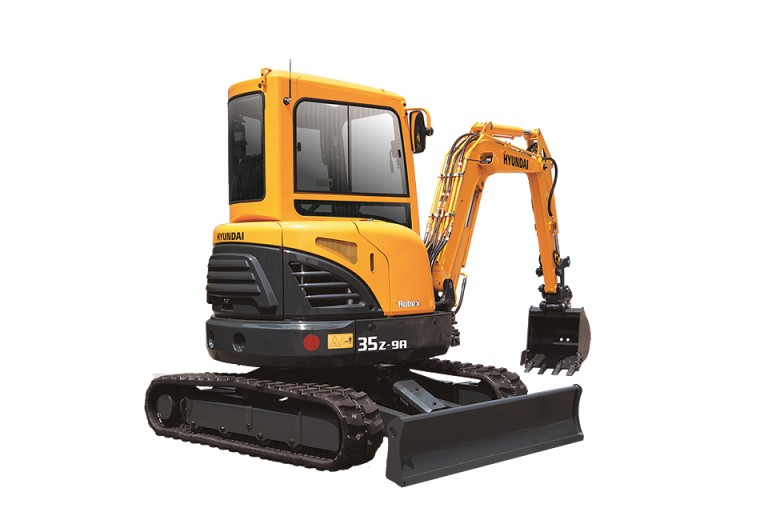

Hyundai Construction Equipment Americas Inc. - R35Z-9A Compact Excavators

The R35Z-9A hydraulic system is precision designed for fast operation with fine control capabilities. The R35Z-9A reduces operating costs over time with long life hydraulic filters, hydraulic oil, shims and bushings.

Specs

Key Specifications
Net Power - SAE J1349 23.7 HP ( 17.7kW) at 2,200rpm
Operating Weight (Cab) 3,690 Kg (8,140lb)
Operating Weight (Canopy) 3,550 Kg (7,800lb)
Max. Digging Depth 3,135 (10' 3")
Bucket Digging Force 6,900 lbf
