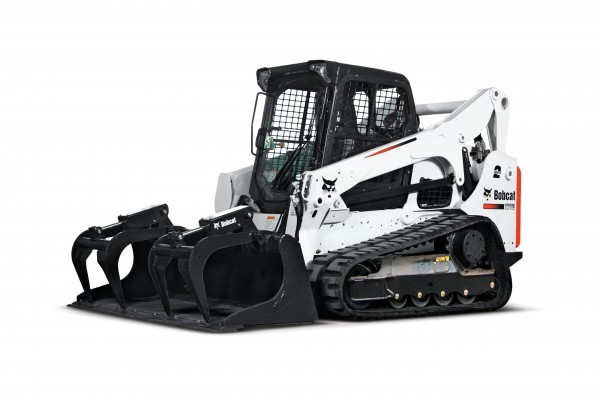

Bobcat Company - T770 Compact Track Loaders

Whenever you need to work in the most demanding conditions or increase your working season, the T770 will be your best partner. With more pushing power, more tipping load and lower ground pressure than a skid-steer loader, landscaping, grading, forestry, loading application will be done better. A new level: with the T770 Roller suspension™ and 2 speed travel options, comfort & performance are ensured.

Features & Benefits

Operator comfort

The threshold of the cab door has been lowered and the size of the cab door has been increased, making it easier for operators to enter and exit the cab.

Visibility

The new cab offers 30% more visibility all around the loader. The 5 cm forward positioning of the cab places the operator closer to the attachment. Forward visibility is further enhanced thanks to a 45% larger door.

Performance

Traction on the new generation loaders has been increased by 15 to 20% to provide greater pushing and digging power. The ratios in the transmission were changed.

HYDRAULICS

The standard flow hydraulic efficiency has been increased by over 30%, providing better attachment performance. Hydraulic flow has been increased by 11% or 9 l/min. At the same time, the pressure of the pumps has been increased by almost 14 bar.

Reliability / Durability

The new generation loaders are built to work long hours on demanding jobsites. The hydraulic quick couplers are mounted directly to the front plate of the lift arm. A guard bar extends out in front of the couplers for added protection.

Serviceability

For an easy daily maintenance, the swing-open tailgate and the transverse mounted engine provide one-sided serviceability. Cab tilt provides easy access to the hydraulics. All result in unmatched access to routine and long term maintenance points.

Specs

Key specifications
Rated Operating Capacity (SAE) 3475 lb (1576 kg)
Operating Weight 10327 lb (4684 kg)
Ground Pressure (Rubber) 4.2 psi (0.29 bar)
Auxiliary Std Flow 23 gal/min (87.1 l/min)
Auxiliary High Flow 36.6 gal/min (138.5 l/min)
