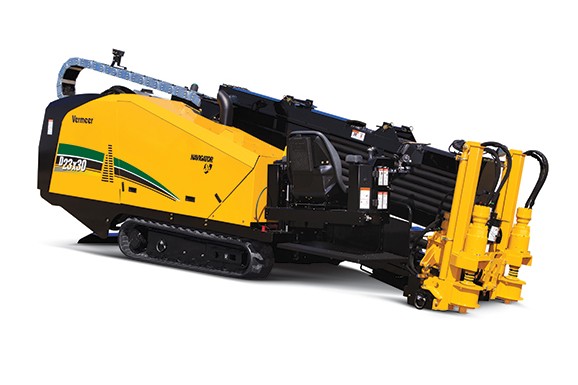

Vermeer - D23x30 S3 Horizontal Directional Drills

Introducing a new direction in HDD — the D23x30 S3 Navigator® horizontal directional drill is one of the quietest drills on the HDD market. With 100 hp (75 kW) Deutz Tier 4 Final or Tier 3 (EU Stage IIIA) engine options, the D23x30 S3 offers speed and power in a short, narrow footprint to help increase productivity when working in compact urban or commercial jobsites. With 24,000 lb (106.8 kN) of thrust and pullback and 3000 ft-lb (4067.5 Nm) of rotational torque — an impressive increase over its predecessor (the D20x22 Series II) — the D23x30 S3 quietly leads the way in meeting the challenges operators face every day.


Key Specifications
Weight 14080 lbs (6386.6 kg)
Gross Horsepower 100 hp (74.6 kW)
Displacement 220 cu-in (3.6 L)
Thrust/Pullback Force 24000 lbs 10886.2 kg
Minimum Bore Diameter 4" (10.2 cm)
