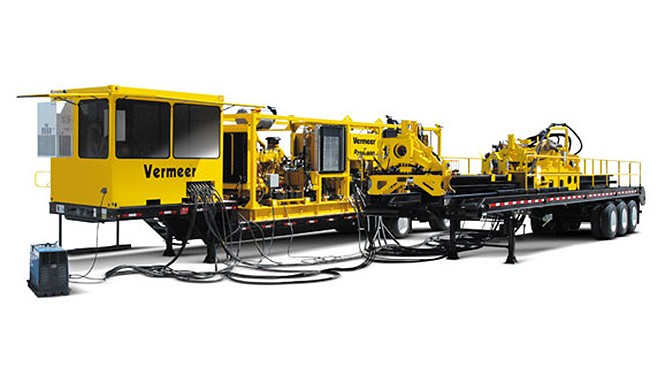

D750x900 NAVIGATOR® Horizontal Directional Drills

Engineered for reliability, the field-tested D750x900 is equipped with optimized features for large-diameter drilling. Its penetrating twin Caterpillar C-18 engines produce a maximum of 92,000 ft-lb/125,120 Nm of rotational torque and 750,000 lbs/3,336 kN of thrust/pullback.

Specs

Key Specifications
Weight (Drill Rack) 101000 lbs (45812.8 kg)
Weight (Driller Cabin) 6000 lbs (2721.6 kg)
Gross Horsepower 800 hp (596.6 kW)
Thrust/Pullback Force 784000 lbs (355616.4 kg)
Breakout Force (Lower Breakout Vise) 253000 ft-lb (343022.5 Nm)
Clamp Force (Upper Breakout Vise) 250000 ft-lb (338955 Nm)
