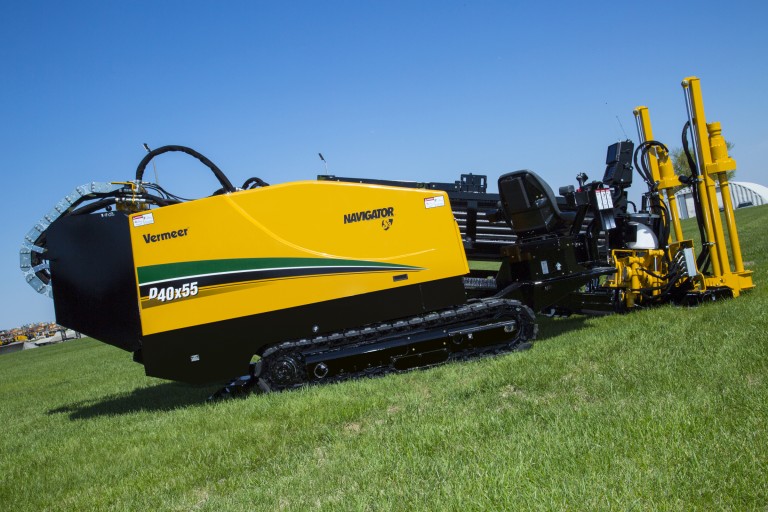

D40x55 S3 Horizontal Directional Drills

Introducing a new direction in horizontal directional drilling (HDD) — the versatile D40x55 S3 offers premium performance, class-leading cycle times and a variety of drill rod options, making it well-suited to variety of applications – from long fiber shots to light pipeline work. With 40,000 lb (177.9 kN) of thrust and pullback and 5500 ft-lb (7457 Nm) of rotational torque — a 10% increase over its predecessor (D36x50 Series II) — the D40x55 S3 helps maximize jobsite productivity.

Specs

Key Specifications
Weight 22380 lbs (10151.4 kg)
Gross Horsepower 140 hp (104.4 kW)
Displacement 275 cu-in (4.5 L)
Thrust/Pullback Force 40000 lbs (18143.7 kg)
Minimum Bore Diameter 4" (10.2 cm)
