D1000x900 NAVIGATOR®

star_border View Full Profile

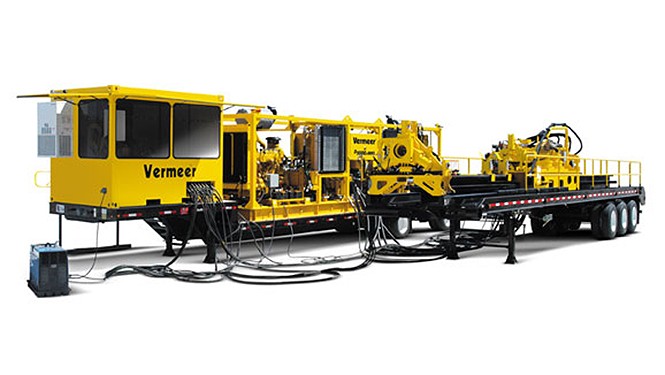

D1000x900 NAVIGATOR® Horizontal Directional Drills

Maximize your drilling muscle with the field-tested D1000x900. Loaded with feature after feature to improve performance, reliability and durability, the D1000x900 is equipped with dominating twin Caterpillar C-27 engines, producing a maximum of 92,000 ft-lb/125,120 Nm of rotational torque and 1,000,000 lbs/4,448 kN of thrust/pullback.

Specs

Key Specifications
Weight (Drill Rack) 101000 lbs (45812.8 kg)
Weight (Driller Cabin) 6000 lbs (2721.6 kg)
Gross Horsepower 800 hp (596.6 kW)
Thrust/Pullback Force 1000000 lbs (453592.4 kg)
Breakout Force (Lower Breakout Vise) 253000 ft-lb (343022.5 Nm)
Clamp Force (Upper Breakout Vise) 250000 ft-lb (338955 Nm)
