D330x500 NAVIGATOR®

star_border View Full Profile

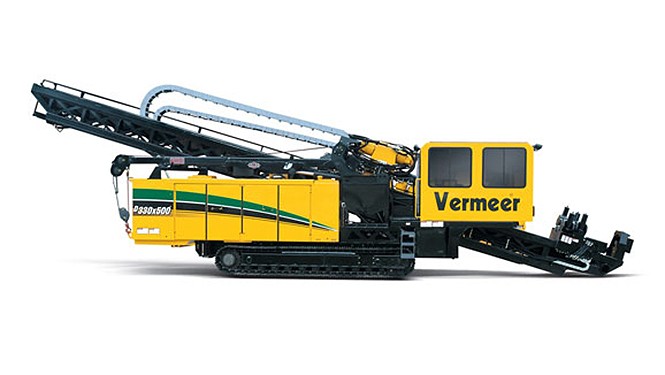

D330x500 NAVIGATOR® Horizontal Directional Drills

Sized within legal dimensions in transport mode, the D330x500 travels to job sites at any time of day. Once there, you’ll set up fast because of its self-contained design. The 486 hp/363 kW Caterpillar C-15 Tier 3 diesel engine gives you a ground-penetrating 50,000 ft-lb./67,800 Nm of rotational torque and 330,000 lbs/1,468 kN of thrust/pullback.

Specs

Key Specifications
Weight 90000 lbs (40823.3 kg)
Gross Horsepower 540 hp (402.7 kW)
Displacement 928 cu-in (15.2 L)
Thrust/Pullback Force 330000 lbs (149685.5 kg)
Minimum Bore Diameter 6.5" (16.5 cm)
