D1320x900 NAVIGATOR®

star_border View Full Profile

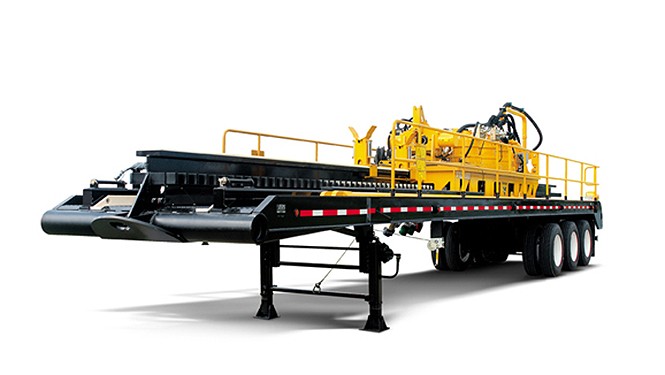

D1320x900 NAVIGATOR® Horizontal Directional Drills

Maximize your drilling muscle with the field-tested D1320x900. Loaded with feature after feature to improve performance, reliability and durability, the D1320x900 is equipped with dominating twin Caterpillar C-27 engines, producing a maximum of 102,500 ft-lb (138,971.6 Nm) of rotational torque and 1,360,000 lbs (616,885.7 kN) of thrust/pullback.

Specs

Key Specifications
Weight (Drill Rack) 101000 lbs (45812.8 kg)
Weight (Driller Cabin) 6,000 lbs (2,722 kg)
Gross Horsepower 800 hp (596.6 kW)
Thrust/Pullback Force 1360000 lbs 616885.7 kg 1360000 lbs (616885.7 kg)
Breakout Force (Lower Breakout Vise) 253000 ft-lb (343022.5 Nm)
Clamp Force (Upper Breakout Vise) 250000 ft-lb (338955 Nm)
