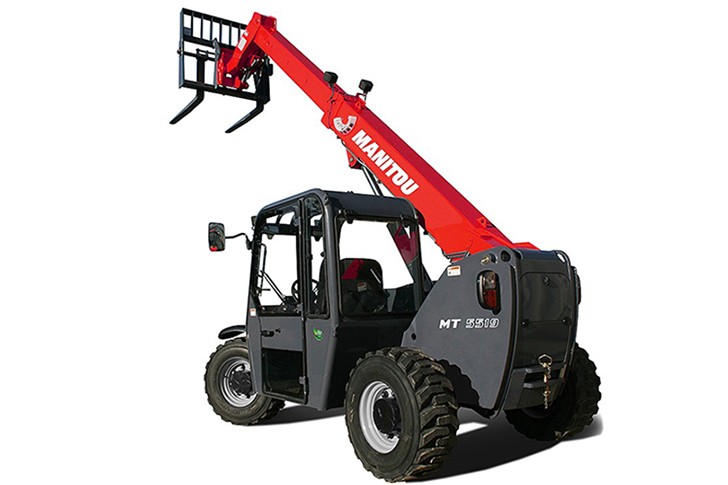

Manitou - MT 5519 Telehandlers

MANITOU MT Series construction telescopic handlers are known for their rugged, heavy-duty build and compact design. These machines were created to handle a wide variety of tasks in the most demanding conditions.

Although its modest in size, the all-new, MT 5519 telescopic handler is the right machine when there’s demanding work to be done in small spaces. With a lift height of 19’1” (5.8 m) and a maximum load capacity of 5,500 pounds (2495 kg), this machine will deliver big results in confined spaces.

Features & Benefits

COMPACT PERFORMANCE

Don’t be fooled by the MT 5519’s compact size. This machine is built for performance with a lift capacity of 5,500 pounds (2495 kg) and a powerful 68-hp (50.7 kW) Interim Tier IV Yanmar diesel engine.

EXTREME MANEUVERABILITY

With a turning radius of just 11 feet (3.4 m) and an overall height of only 6’4” (1.93 m), the MT 5519 makes working, and turning, in small spaces easy.

ENHANCED TRACTION

The two-speed transmission provides a high speed for ground travel up to 15 mph (24 km/hr) and a lower speed for extra tractive power.

TIME TO MULTI-TASK

The MT 5519 easily adapts to meet your needs with a variety of available attachments including truss booms, jib booms, buckets, multiple types of carriage forks and more.

STEER CLEAR

Three selectable steering modes, 2-wheel, 4-wheel and crab, allow operators to maneuver through complicated obstacles with ease.

HYDRAULIC PERFORMANCE

Hydraulic flow up to 22 gpm (83 L/min) provides excellent hydraulic performance. Optional auxiliary hydraulics are available to power a variety of available attachments.

IN CONTROL

Two standard, easy-to-reach, direct mechanical joystick controls provide smooth operation for boom and fork tilt functions, optimizing operator precision and productivity.

FAST AND MANEUVERABLE

With travel speeds up to 20 mph (32.5 km/hr), a compact design, three steering modes and a tight turning radius, the MT Series telescopic handlers get around jobsites quickly and efficiently.

HIGH LIFT HEIGHTS

Lift heights from 34 to 55 feet (10.4 to 16.8 m) make material handling easy.

Specs

Key Specifications
Lifting Height 19'0" (5.8 m)
Lifting Capacity 5500 lbs (2494.8 kg)
Weight (unladen) 9979.2 lb (4536 kg )
Power 69 hp (51 kW)
