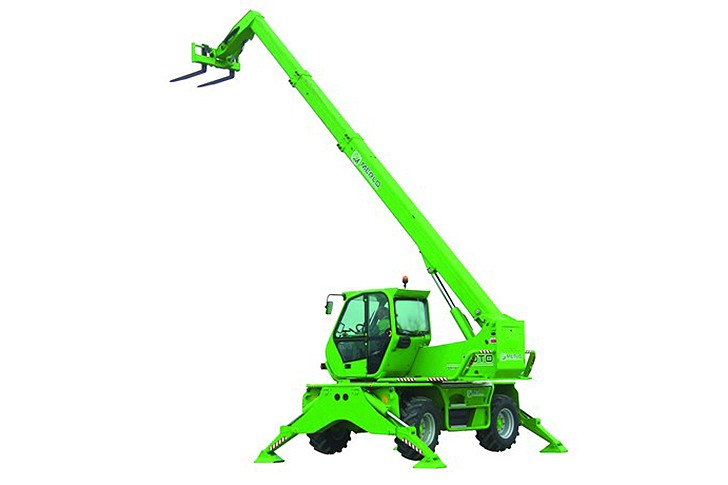

Roto - 38.16 S Telehandlers

When traditional handling methods cannot get the job done, it's time for a new idea: Roto a telescopic handler with the added dimension of a slewing turret.

Safety, efficiency and manoeuvrability are the key features of this revolutionary concept, the fruit of Merlo's research and experience since 1990. Roto telehandlers embody a new concept of strength in action, successful even in the most challenging handling and lifting operations, thanks to their tremendous off-highway performance.

Imagine a family of machines, combining all the benefits of a telescopic handler plus a lightweight lifting capability and the ability to safely place personnel into position at height. On top of this, unrivalled mobility on the road and brilliant performance on site. With load capacities up to 5 tons and lift heights of over 31 metres (MCTJ model). Put simply, that is the Roto! Three distinct product families offer high profitability and versatility in site tasks that would normally require several specialized or larger machines.

Specs

Key Specifications
Maximum Load Capacity 3 800 kg
Maximum Lift Height 15,7 m
Maximum reach 13 m
Lift capacity at maximum lift height 2 500 kg
Power at 2400 rpm 102 hp (74.9 kW)
Total unladen mass (with forks) 12 080 kg
