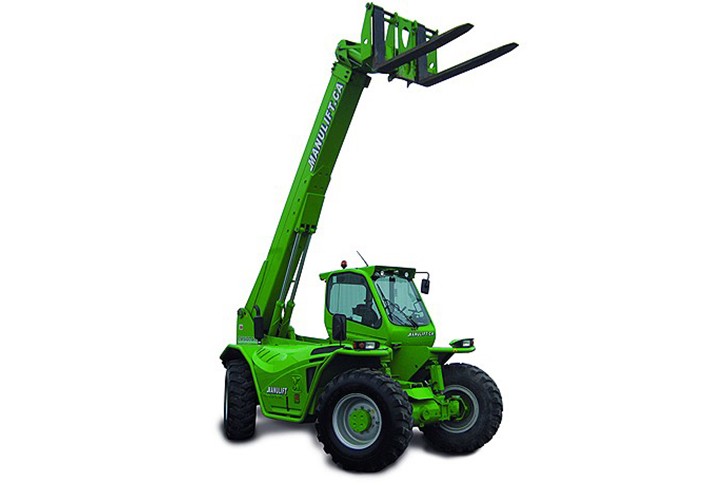

Manulift - Panorama - 65.14HM Telehandlers

The HM series of PANORAMIC handlers further demonstrates that Merlo comes top in the innovative technology stakes. These machines have been specifically designed to enhance operational performance levels and to ensure highly effective solutions in all heavy-duty handling operations.

The exclusive fittings further boost its intrinsic potential: the Load-Sensing hydraulic system with regenerating device is top-of-the range in terms of operating speed and efficiency, a further performance enhancing feature is the six-cylinder turbocharged engine.

The MERlin system for the automated monitoring of all machine functions goes to further illustrate the advantages of the Merlo machines, and the company's commitment to offering the best in high-tech solutions which are the result of ongoing research and innovation, with the added guarantee provided by over forty years experience in the field.


Key Specifications
Maximum Load Capacity 6 500 kg
Maximum Lift Height 13,9 m
Maximum Reach 9,05 m
Lift capacity at maximum lift height 4 000 kg
Power at 2400 rpm 145 hp (107 kW)
Total unladen mass (with forks) 15 500 kg
