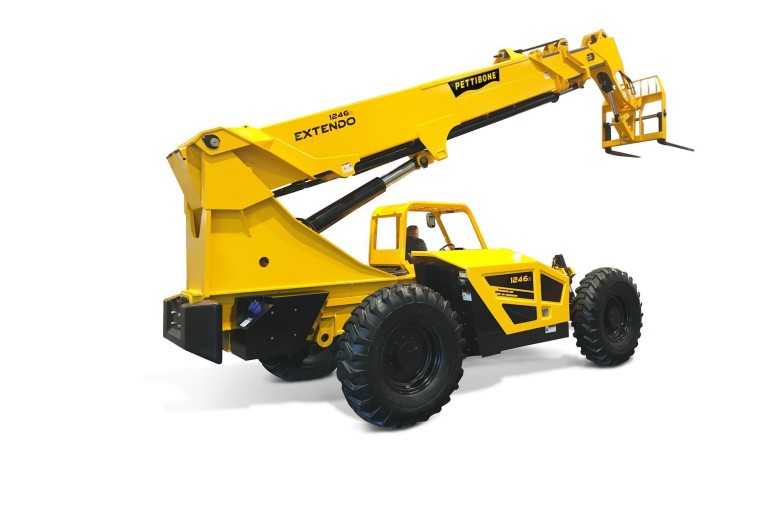

The Extendo 1246X is a true material handling workhorse, delivering impressive load capacity, superior longevity and optional controllability on a wide array of applications.
|Max Load Capacity||12,000 lbs (5,443 kg)|
|Maximum Lift Height||46' 6" (1,417 cm)|
|Landing Height||42' (1,280 cm)|
|Maximum Forward Reach||30' (915 cm) at 24" LC|
|Approximate Operating Weight||29,250 lbs (13,268 kg) without outriggers 30,750 lbs (13,948 kg) with outriggers|
|Drawbar Pull (GVW)||28,600 lbs (12,973 kg)|
