Jobsites demand superior performance, and that's what the RS Series Telescopic Handlers provide. Lifting up to 12,000 pounds (RS12-42) with lift heights up to 55 feet (RS10-55), these machines provide the extra working capacity without sacrificing the comfort and features expected in the RS Series Telescopic Handlers.
Features & Benefits
Boom tip lift hook option is now available as a factory-installed option or field installed option.
Frame levelling feature adjusts 10-degrees to the left and right, enhancing performance on uneven terrain.
FOPS is completely welded into the ROPS, providing better visibility when placing a load.
Dual-element air filter protects the engine from airborne contaminants, increasing engine performance and longevity.
Three steering modes – 4-wheel, 2-wheel and crab – enhance maneuverability and are easily changed by the flip of a switch. Tight turning radius of only 13’ 10” (4.22 m) is one of the tightest in its class.
Remote boom control
Remote Boom Control can raise/lower and extend/retract the boom, as well as start/stop the engine from the work platform or outside the cab.
Engine shutdown protection feature allows 30-seconds of run time for moving the unit to a safe location for loading or repair. Dana four-speed power-shift transmission (4-forward/3-reverse speeds) is easy to maintain.
Dual-function, pilot-assisted joystick is standard equipment. Optional tri-function, pilot-assisted joystick allows the operator to set variable tilt and auxiliary function speeds. Auto-levelling feature keeps loads level when raising/lowering the boom.

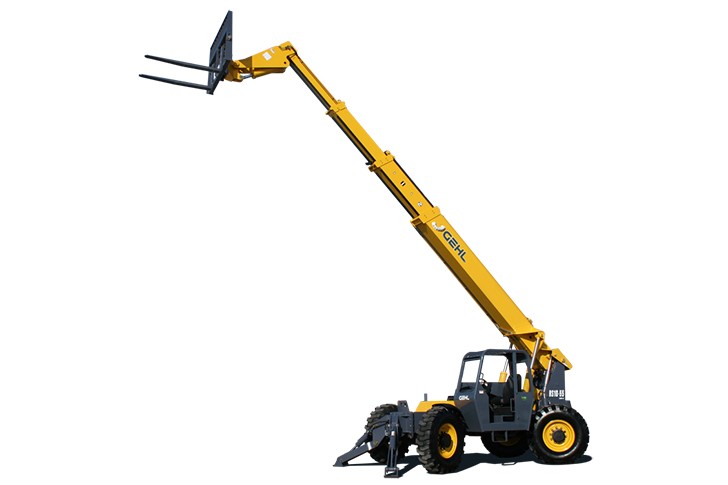

There is a tool for every job, and the RS10-55 GEN:2 can power them all. Dynattach Quick-Attach system allows quick attachment changes with unsurpassed ease.
|Rated Lift Capacity||10,000 lbs. (4536 kg)|
|Gross Power||120 hp (89 kW)|
|Maximum Lift Height||55' 1" (16.8 m)|
|Approximate Weight||27,800 lbs. (12610 kg)|
