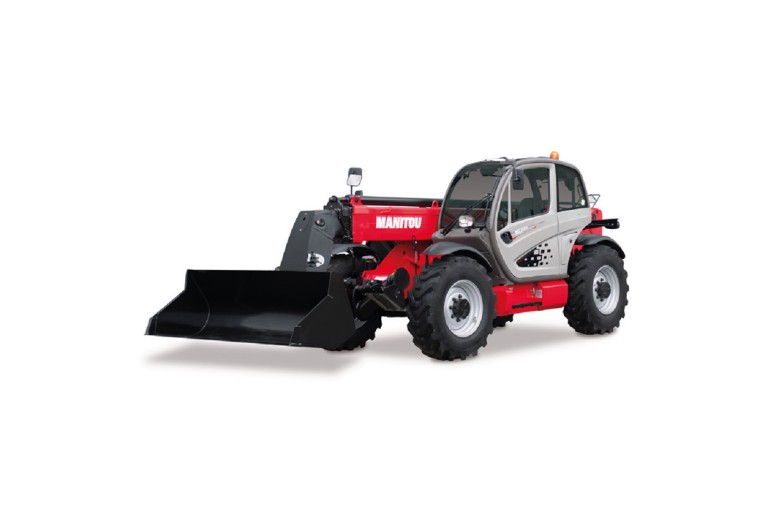

Manitou - MT 1135 H Telehandlers

The MT 1135 H is designed for users working on construction sites for buildings 2 to 3 storeys tall. The Joystick Switch & Move system allows you to control the telescopic arm with just the one hand for more comfort, whilst the cabin is spacious and ergonomic, offering excellent visibility and easily accessible via a large door for even more comfort for your teams.

Specs

Key Specifications
Lifting height 11.05 m (36'3")
Lifting Capacity 3500 kg (7700 lb)
Max reach 7.75 m (25'0")
Max reach capacity 0.4 kg (0.14 lb)
Drawbar pull 8000 dan (17984.71 lbf)
Breakout force 6400 dan (14387.77 lbf)

Company Info

1 Gehl Way
West Bend, WI
US, 53095

Website:
manitou.com/en
