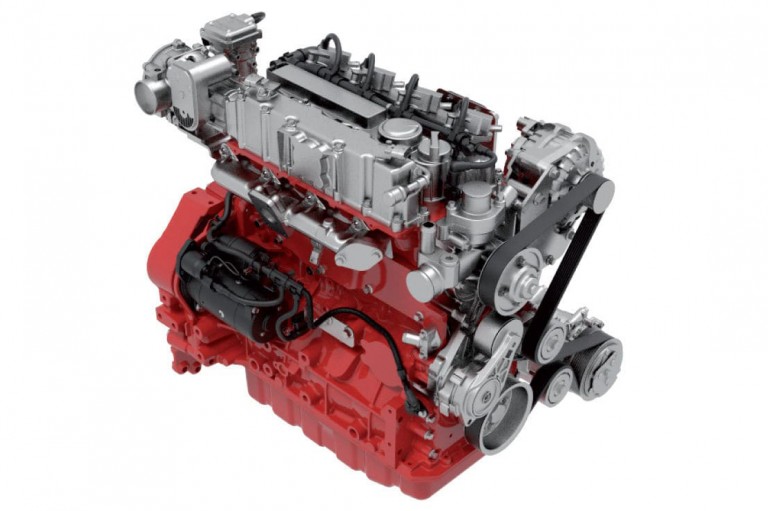

G 2.2 / 2.9
Newly-designed, water-cooled 3- and 4-cylinder spark ignited LPG engines. Robust engine design for demanding industrial applications based on the successful TCD 2.9 series. Full electronic controlled LPG gas system, stoichiometric combustion, closed loop control and knocking sensors for lowest emissions and best performance at the same time. Open EAT system (3 way catalyst) means 100% machine availability even under lowest load duty cycles. Same foot print and major installation interfaces as diesel engines TCD 2.2/2.9 for ease of installation in diesel and gas powered machines. Up to 1000 h oil change intervals, maintenance-free valve train and optionally service-friendly multi-V belt drive result in low maintenance cost and increased machine availability.
|Power||26-54 kW / 35-73 hp at 2200-2600 min-1/rpm|
|Emission standards||EU Stage IIIB, IV, V / US EPA Tier 4i + 4|
|No. of cylinders||3-4|
|Bore/stroke||92/110 mm | 3.6"/4.3"|
|Max. Torque||160 | 118 Nm 215 | 159 lb/ft.|
