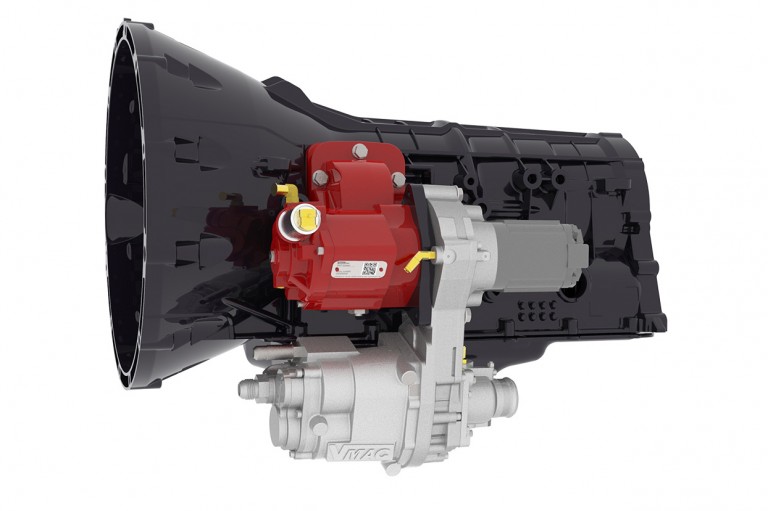

VMAC - DTM70-H Compressors

This system is the best choice for customers who are concerned with saving space and reducing weight on their service trucks, and who need both air and hydraulic power at the same time. This multi-power system allows customers to operate small to medium sized air tools, as well as a hydraulic crane or other equipment simultaneously. The system is designed for the Ford F250 to F550 Super Duty 6.7L Power Stroke diesel 4x2 and 4x4 work truck with TorqShift™ Automatic Transmission. Truck Mounting Kits VMAC designs truck mounting kits for the easiest possible installation. Working closely with leading truck manufacturers, VMAC ensures that mounting kits do not affect OEM warranties.

Specs

Key Specifications
Air Compressor Output Up to 70 CFM @ 100 psi (175 psi max); actual CFM output dependent on engine RPM (see chart below)
Air Compressor Type PTO driven, direct transmission mounted, 100% duty cycle, VMAC oil-injected rotary screw
Weight (wet) Approximately 180 lbs (81.6 kg)
PTO (included) CHELSEA® 249 Series, electrically actuated, PTO indicator lamp
