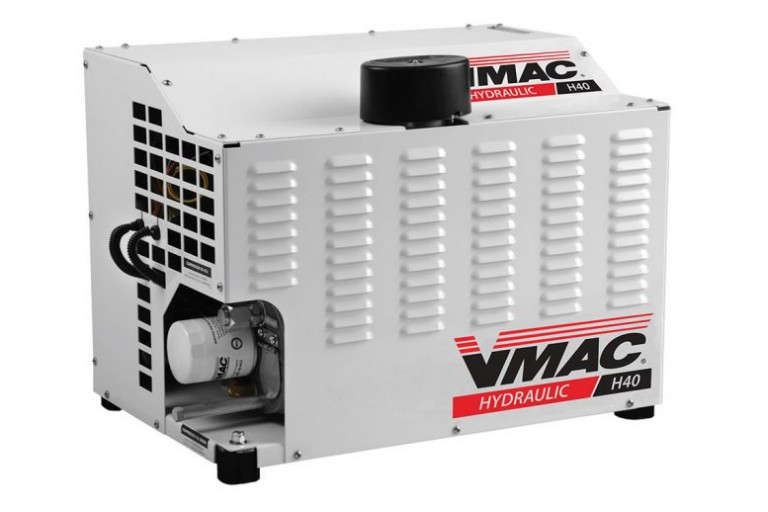

40 CFM Hydraulic Driven Air Compressor


star_border View Full Profile
VMAC - 40 CFM Hydraulic Driven Air Compressor Compressors

The 40 CFM Hydraulic Driven Air Compressor is the best choice for customers who require hydraulic-powered compressed air and want better performance than what they are getting out of their current reciprocating air compressor.

The powerful rotary screw air compressor is ideal for operating small to medium sized air tools. The compact design allows it to fit on trucks and specialty equipment with limited available space.


Key Specifications
Air Compressor Output 25-40 CFM* @ 100 psi (150 psi max)
Air Compressor Type Direct-driven, 100% duty cycle, VMAC oil-injected rotary screw
Hydraulic Flow Required 9-12 GPM (34-46 LPM); open center hydraulic circuit
Hydraulic Pressure at Full Load (hydraulic pump is recommended) 2,345 psi (162 bar); 3,000 psi (207 bar)
Weight (dry) Approximately 150 lbs (68 kg)
