6-in-1 Multifunction (CAT Power)


star_border View Full Profile
VMAC - 6-in-1 Multifunction (CAT Power) Compressors

For industrial jobsites or residential areas where noise level is a concern, there is no better system.

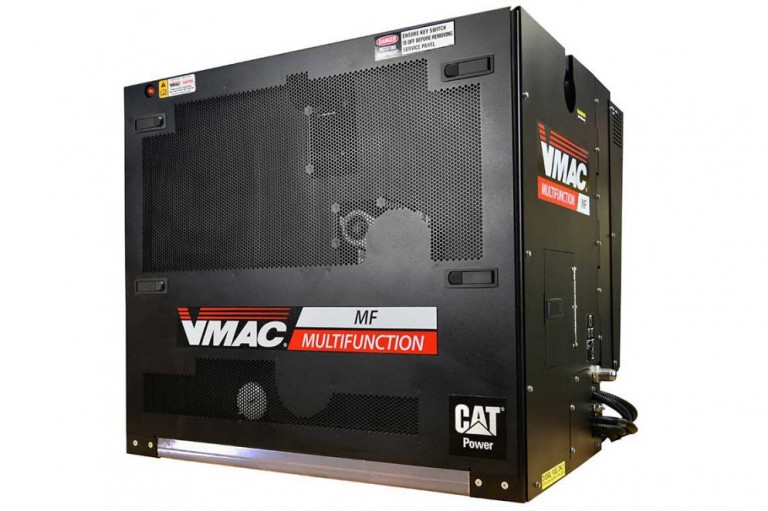

The VMAC Multifunction Power System, powered by a CAT Industrial Diesel Tier 4F engine, includes six power sources in one compact, quiet system. With noise reduction panels, low and high idle controls and Standby Mode, operators can safely communicate while working without disturbing the jobsite or the neighbors. This self-contained system can be fully integrated into any diesel work truck fuel system or skid-mounted for stand-alone applications with an optional external fuel tank.


Key Specifications
Air Compressor Output 45 CFM @ 100 psi (175 psi max)
Air Compressor Type Belt-driven, 100% duty cycle, VMAC oil-injected rotary screw
Engine CAT C1.1 industrial diesel engine, Tier 4 final; Inline 3, 4-Stroke; Naturally Aspirated (Extended oil change interval (CAT) 500 hrs/1 yr)
Weight (dry) Approximately 710 lb (322 kg) (excluding optional fuel tank)
