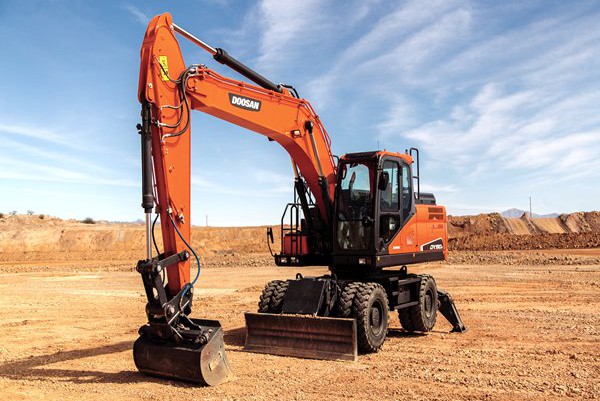

DX190W-5 Excavators

When you need big-time productivity in a machine that's easy to transport and maneuver, turn to the Doosan DX190W-5. It's ideal for public works departments as well as highway and utility contractors, subdivision and commercial developers and industrial firms with large, spread-out facilities.

Its modular design allows you to easily configure the machine’s undercarriage with a dozer blade or outriggers to be mounted on either end of the machine. The dozer blade can be used for leveling or backfilling material, or stabilizing the machine during digging applications. The blade's large dozer bottom and parallel design minimize ground pressure. Outriggers can be individually controlled in order to level the machine on slopes. The DX190W-5 can be ordered with either a one-piece or two-piece boom.

Specs

Key Specifications
Rated Flywheel Power (Gross) 173.5 hp @ 1,900 rpm (SAE J1995)
Rated Horse Power (Net) 167.6 hp @ 1,900 rpm
Max. Torque (Net) 557 lbf·ft @ 1,400 rpm
Operating Weight 43,431 lb
Max Digging Reach (Ground) 29' 8"
Max Digging Depth 18' 9"
Max Loading Height 22' 2"
Bucket Digging Force - Pressure up 28,219 lb
