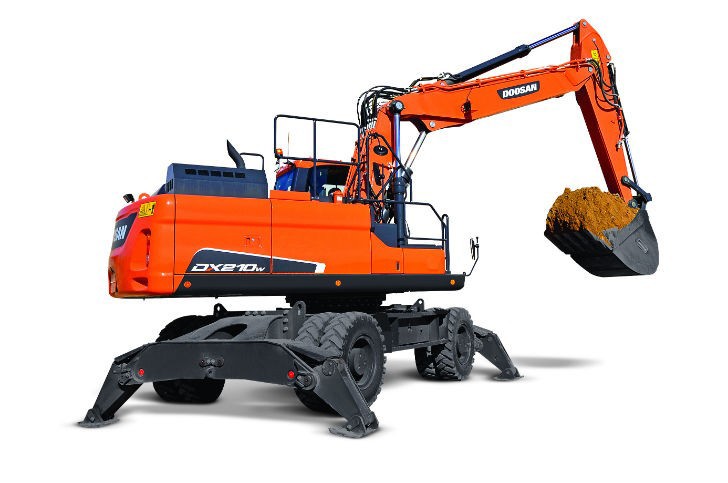

DX210W-5 Excavators

Built to tackle the most demanding tasks, the DX210W-5 offers the greatest horsepower, breakout force, and dig depth of any Doosan wheel excavator. With a versatile combination of powerful performance and easy mobility, it’s ideal for job sites requiring uncompromised power and maneuverability.

Its modular design allows you to easily configure the machine’s undercarriage with a front dozer blade with outriggers in the rear or outriggers on either end of the machine. The dozer blade can be used for leveling or backfilling material, or stabilizing the machine during digging applications. The blade's large dozer bottom and parallel design minimize ground pressure. Outriggers can be individually controlled in order to level the machine on slopes. The DX210W-5 can be ordered with either a one-piece, standard boom or two-piece, articulated boom.

Specs

Key Specifications
Rated Flywheel Power (Gross) 189.1 hp @ 1,900 rpm (SAE-J1995)
Max. Torque (Net) 593 lbf·ft @ 1,400 rpm
Operating Weight 47,179 lb
Max Digging Reach (Ground) 31' 10"
Max Digging Depth 19' 4"
Max Loading Height 23' 4"
Arm Digging Force - Pressure up 24,030 lb
Bucket Digging Force - Pressure up 31,306 lb
