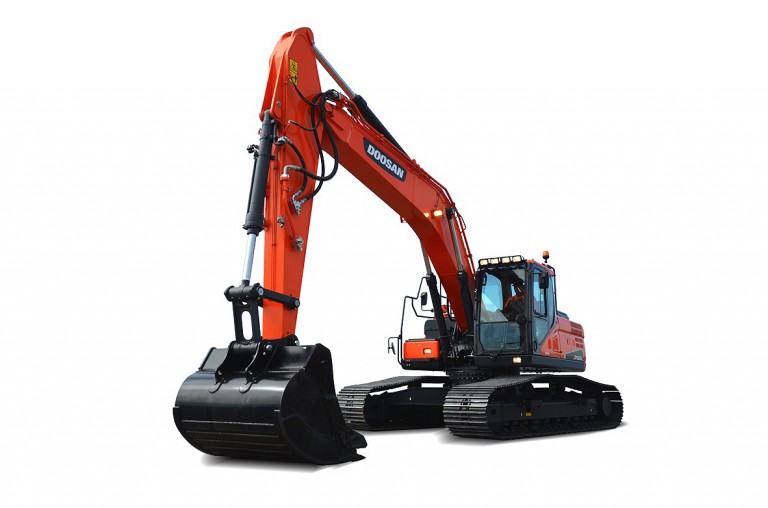

DEVELON - DX255LC-5 Excavators

The high-pressure common rail fuel injected engine and electronic power optimizing system (EPOS) provide optimum power and fuel efficiency. Four work modes, auto-idle and machine diagnostics help you manage your fuel costs. For even greater fuel efficiency, auto shutdown helps owners save fuel while the machine isn’t working.

Designed for long life with a robust frame and reinforced superstructure, the DX255LC-5 is built for reliability. Boom and arm bushings and ultra-hard wear disks deliver dependable performance and extended service intervals. The permanently sealed and lubricated track links maximize uptime and reduce operating costs.


Key Specifications
Rated Flywheel Power (Gross) 189.1 hp @ 1,900 rpm (SAE J1995)
Max. Torque (Net) 593 lbf·ft @ 1,400 rpm
Operating Weight 57,752 lb
Max Digging Reach (Ground) 32' 9"
Max Digging Depth 22' 4"
Max Loading Height 23' 0"
Arm Digging Force - Pressure up 28,219 lb
Bucket Digging Force - Pressure up 39,463 lb
Arm Digging Force - Normal 26,676 lb
