DX42-5 Mini Excavators

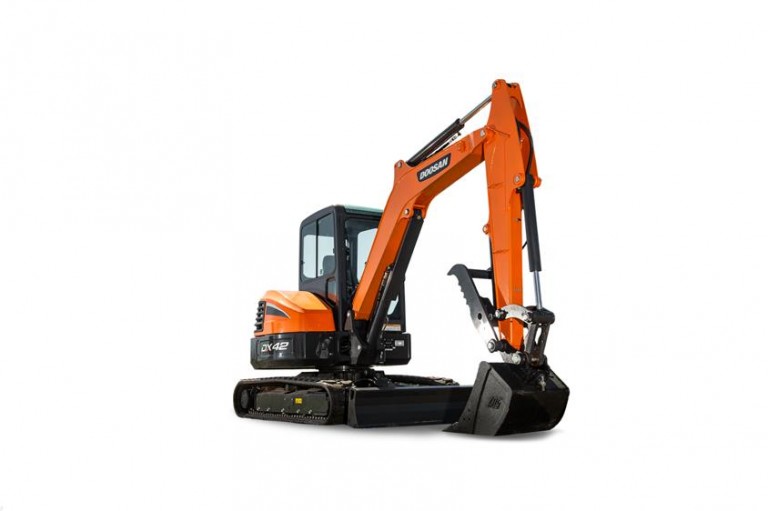

The conventional tail swing Doosan® DX42-5 is a highly maneuverable excavator offering strong bucket breakout force, superior dig depth and excellent reach in the 4- to 5-ton class. With a closed center valve, a piston pump, load-sensing hydraulics and cushioned cylinders, the DX42-5 is packed with high-end hydraulic components that deliver the power and performance you need for difficult jobs.

Boasting a relatively narrow width for a machine of its class, the DX42-5 gives you the opportunity to expertly operate on congested jobsites or navigate easily through doorways, gates and other obstacles.

Specs

Key Specifications
Rated Flywheel Power (Gross) 42.6 hp @ 2,200 rpm (SAE-J1995)
Rated Horse Power (Net) 39.5 hp @ 2,200 rpm
Max. Torque (Net) 112 lbf·ft @ 1,600 rpm
Operating Weight 9,555 lb
Max Digging Reach (Ground) 17' 2"
Max Digging Depth 10' 6"
Max Loading Height 12' 4"
