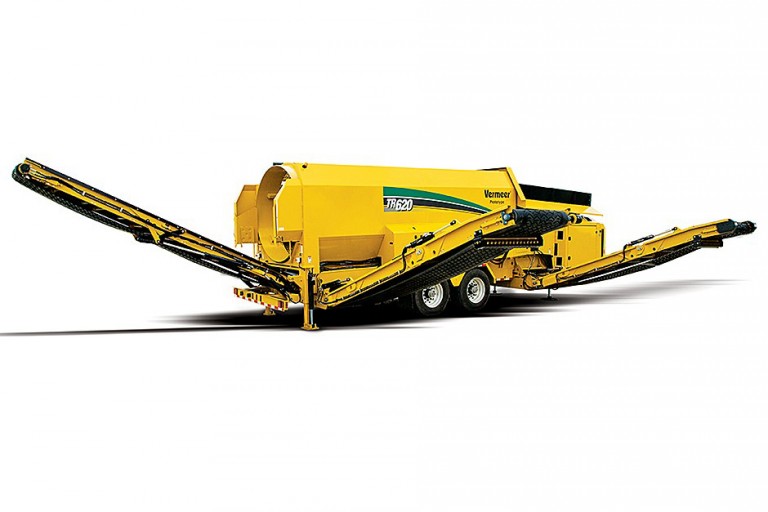

Vermeer - TR620 Mobile Screens

The TR620 trommel screen is built with the toughness you expect from Vermeer, packaged in a compact design to meet your jobsite needs. The tension screen and drum are designed for optimum productivity, offering simple adjustments and maintenance. Combined with the flexibility to produce three products with an optional conveyor, the TR620 offers simplicity and versatility with a reduced footprint.

Features & Benefits

Flexibility

With the flexibility to choose an optional three-conveyor configuration, the TR620 allows you to extract three unique products from the incoming material.

Engine

A Cummins QSB 3.3l Tier4i (Stage IIIB), 120 hp (90 kW) engine is mounted on a pivoting frame that swings out 30 degrees for superior access to fuel filters and hydraulic reservoir for maintenance and service.

Productivity

With the ability to tension the screen around the drum, operators can add rigidity to the screens. This design allows the user of smaller gauge wire, ultimately increasing the open area of the screen to help improve productivity.

Controls

Operators can control the machine through either the Vermeer DP10 display mounted on the control panel, or through a hand-held transceiver remote. The operator can choose from four programmable presets or adjust on the fly based on incoming material.

Servicing

A single-hinged side panel exposes the full length of the trommel drum from ground level for drum service and removal.

Hydraulic chain drive system

A hydraulic chain drive system allows the drum to lift off the cog for service, and bolt-on sprockets can be changed quickly and help lower repair costs

Specs

Key Specifications
Weight 37440 lbs (16982.5 kg)
Weight with third product conveyor 40000 lbs (18143.7 kg)
Capacity 180 cu yd (137.6 cu m) per hour with 0.5" (1.3 cm) screens installed and material with moisture less than 40%
Engine Make and Model Cummins QSB 3.8l Tier 4F
Engine Rating 120 hp
Hopper Capacity 6.5 cu yd 5 cu m
Drum Operation 0-33.1 gpm (0-125.3 L/min)
Conveyor Motor Displacement 9.9 cu-in 162.2 cu-cm
