Terex Minerals Processing Systems - MHS8203 Mobile Screens

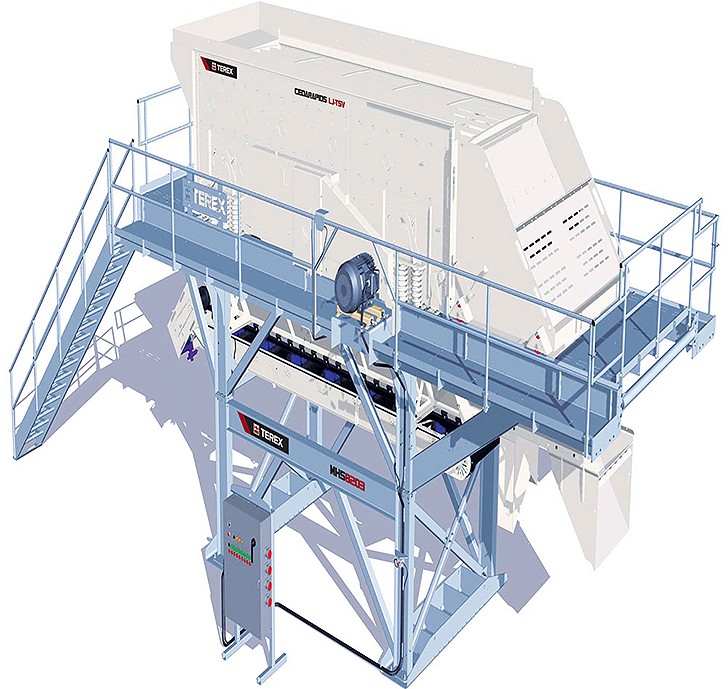

The MHS8203 Modular Horizontal Screen features the large capacity 8' x 20' (2438mm x 6096mm) Terex Cedarapids LJ-TSV screen with its legendary El-JayTM oval stroke action. Set-up time and ease of operation is aided by the simplicity of the modular product range. All of our modular crushers and modular screens bolt together on site and require minimal on-site wiring. Designed with logistics in mind, the MHS8203 Horizontal Screen Module, including all its components, is easily transported in shipping containers.

Features & Benefits

Module Structure

Bolts together on site, quick set-up time with basic tools. Pre-wired “plug and play” design, minimal on-site wiring. Robust weather-protected control panel with user-friendly controls. Extra-heavy-duty I-beam frame. Rigid diagonal truss construction.

Terex Cedarapids LJ-TSV Horizontal Screen

8' x 20' (2438mm x 6096mm) 3-deck LJ-TSV8203-38 horizontal screen with El-JayTM oval stroke design. Three-shaft vibrator mechanism with adjustable stroke angle, stroke length, and speed. 25% thicker 5/16" (8 mm) grade 50 high strength steel side plates.

Underscreen Conveyor

60" (1524mm) fully skirted underscreen fines conveyor. 20 hp (15kW) standard drive electric motor and gearbox. 3-ply belt with vulcanized splice and easy access belt take-ups. High performance belt wiper. CEMA C 20° troughing rolls.
