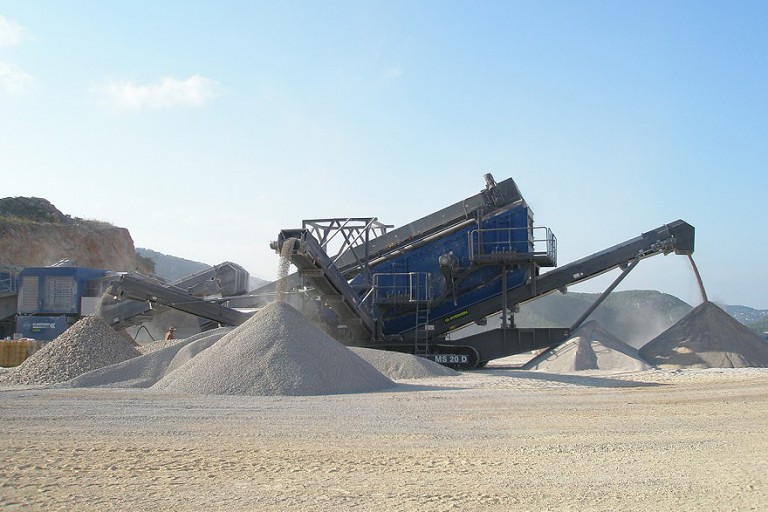

MS 20 D
Mobile triple-deck screening unit in compact, heavy-duty steel design, with integrated track drive and machine mounted on a support frame. Feeding is effected via a conveyor belt. The purely electrically driven plant is designed for a capacity of up to 650 t/h, and is suitable for feed material of up to 150 mm in size. All functions can be locked electrically, including those to upstream or downstream crushing units (e.g. MOBIREX) or conveyor belts.
|Transport weight||57,000 kg|
|Engine power Stage 3a||226 kW|
|Feed capacity up to approx.||650 t/h|
|Feed size max.||150 x 150 mm|
|Feed height (with extension)||2,500 mm|
|Hopper capacity (with extension)||8 m³|
