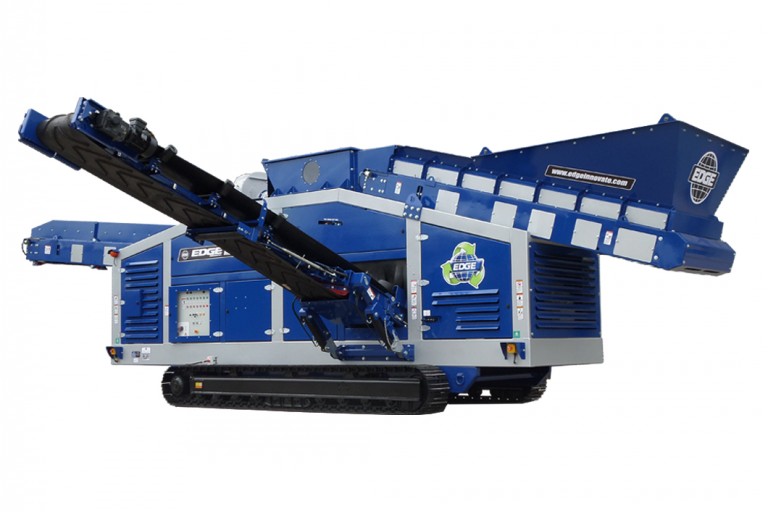

Edge Innovate - MC1400 Track Mounted Screens

The EDGE MC1400 material classifier provides operators with the ability to extract impurities from highly contaminated material in just one pass. Utilizing controlled air flow as a separation medium, the MC1400 is the ideal solution for the cleaning of compost and biomass fractions with its ability to separate heavy fractions from lights. With easily adjustable components such as fan speed, feed conveyor belt speed and drum positioning; the EDGE MC1400 density separator has the capacity to handle a wide range of applications.

The MC1400 allows operators to separate up to four different fractions as standard; lights (plastic, paper, film) mid-weight (wood) and heavy fractions (aggregate, glass, etc.). With ferrous metals being extracted via the magnetic head drum pulley found on the heavy fraction discharge conveyor with the option of attaching an additional magnet to the mid-weight conveyor. Available as track, semi-trailer or static chassis formats, operators have the option of selecting a unit with a diesel/hydraulic power unit, a diesel genset or a direct electric drive.


Key Specifications
Weight 16 tonne (17.6 ust)
Transport Width 2.8 m (9’)
Transport Length 10.7 m (35’)
Transport Height 3.4 m (11’2”)
Working Width 6.9 m (22’6”)
Work Length 11.9 m (38’11”)
Work Height 3.4 m (11’)
