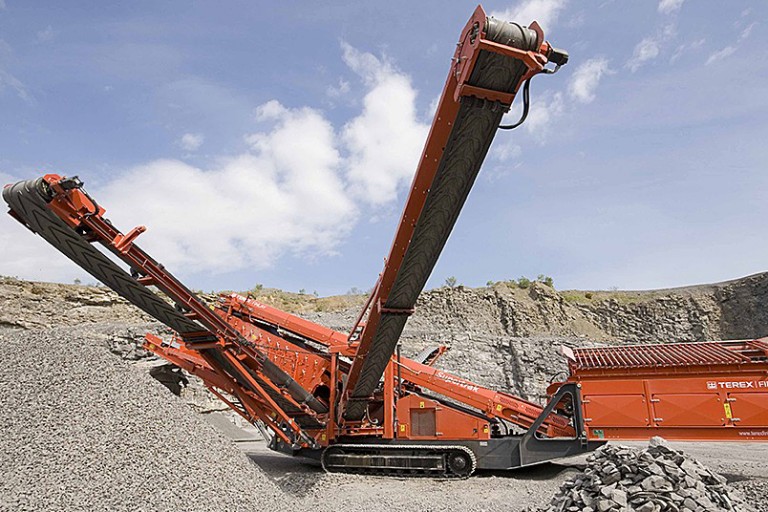

Finlay - Terex® Finlay 684 Track Mounted Screens

The Terex Finlay 684 is a compact easily transportable machine that offers operators rapid set up and tear down times. The NEW screenbox features three large 4.3m x 1.7m (14’ x 5’ 7”) inclined screens giving a large screening area of 236ft2 to provide efficient screening and high capacity. The screenbox features quick wedge tensioning, access holes and bottom deck hydraulic tensioning system to reduce time required for mesh changes. All four discharge conveyors are adjustable and hydraulically fold for transport. The fourth product ‘oversize plus’ conveyor has variable tilt and side slew to accurately discharge material for recirculation and stockpiling.

Features & Benefits

Triple deck

4.3m x 1.7m (14’ x 5’ 7”) screen with full catwalk access.


The fourth (oversize plus) conveyor provides variable tilt and slide slew capability to accurately discharge materials for recirculation to crushers or for stockpiling.


Maximum utilisation of three 4.3m x 1.7m (14’ x 5’ 7”) decks provides ultra-efficient screening capabilities even at small aggregate sizes.


A combination of quick wedge tensioning, convenient access holes and hydraulic tensioning on the bottom deck ensure mesh set up and change out times are kept to an absolute minimum.


Key Specifications
No. Stockpilers 4
Net Engine Power Tier 3 / Stage IIIA: Caterpillar C4.4 83kW (111.3hp) / Stage IIIA Constant Speed: Perkins 1104 97kW (130hp) / Tier 4i / Stage IIIB: Caterpillar C4.4 98kW (131hp) / Tier 4F / Stage IV: Caterpillar C4.4 82kW (110 hp)
Transport Weight 33,500kgs (73,855lbs)
