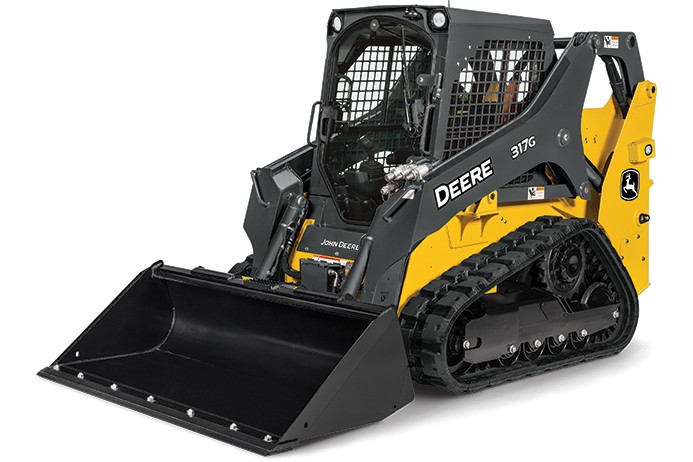

John Deere Construction & Forestry - 317G Compact Track Loaders

With superior pushing power and breakout force, the 317G CTL delivers the tractive effort and leverage to dig-in where other machines just spin. The optional 15.8-inch-wide track is just 4.5 psi, so you can work in soft underfoot conditions and increase side-slope stability. The redesigned vertical-lift boom rises up to 10 ft. 1 in. and delivers best-in-class lifting and truck-loading ability while the optional deluxe LED lighting package, with integrated side lighting, enhances the view of the jobsite. Combined with 2,125-lb. rated operating capacity, the 317G can precisely place pallets and carry the big loads.


Key Specifications
Operating weight 3824 kg (8,423 lb.)
Net Power 45.6 kW (61 hp) @ 2,500 rpm
Tipping Load 2756 kg (6,070 lb.)
Rated Operating Capacity 965 kg (2,125 lb.)
Bucket Breakout Force 2724 kg (6,000 lb.)
