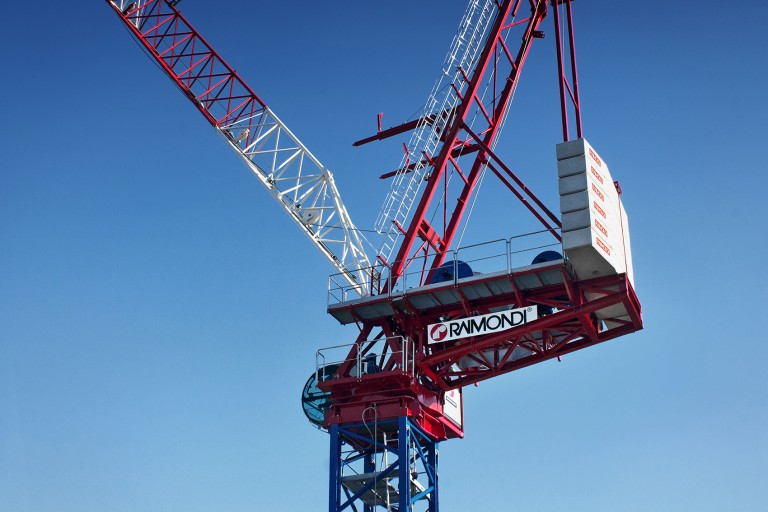

Raimondi Cranes - LR330 Luffing-Jib Tower Cranes

The Raimondi LR330 is the newest luffing jib crane in the range with a maximum jib length of 60 meters and a maximum capacity of 18,000 kg, with two falls and four falls configurations. At the maximum radius, it can lift 3,300 kg in Ultra-lift mode. Six different jib length configurations, from 30 meters to 60 meters, satisfy all needs in terms of specific jobsite configurations. The LR330 may be equipped with three different hoisting winches: standard installed power of 80kW or the two falls configuration with the more powerful 110kW, while the four falls configuration has an installed power of 80kW. The rope capacities are respectively: 650 meters, 1,000 meters, and 980 meters, and all winches may be equipped with a secondary emergency brake.


Key Specifications
Main Bearing Level with Max Jib 48.4 m - 51.4 m
Max Lifting Capacity 18 t
Max Radius 60 m
Lifting Capacity At Max Radius 3.3 t
