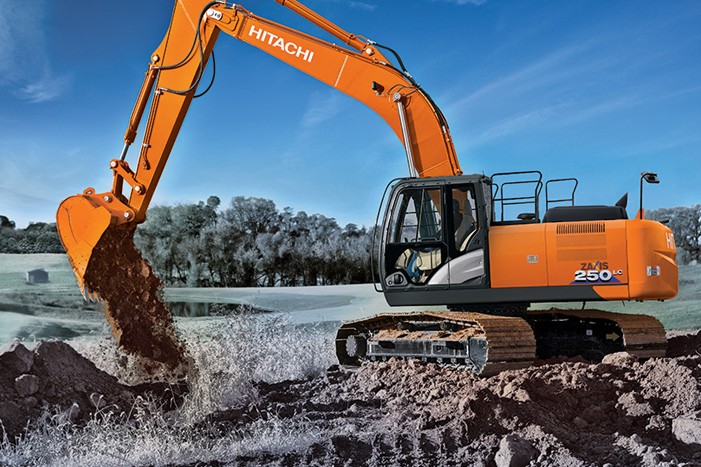

Hitachi Construction Machinery Americas Inc. - ZX250LC-6 Excavators

Full of productivity-boosting advantages, the ZX250LC-6 delivers more efficiency, reliability, and durability.  Front and center is a new, fuel-efficient EPA Final Tier 4 (FT4)/EU Stage IV Isuzu engine that meets rigid emission standards – no diesel particulate filter needed. Plus, you’ll get generous swing torque, dig force, and lift capacity. The spacious cab is designed for operator comfort and productivity, and standard upper-structure handrails provide added safety and accessibility.

The ZX250LC-6 comes standard equipped with three years of ZXLink™ Ultimate, giving you 24/7 online access to machine location, health, utilization, fuel consumption, and other valuable information – so you can better understand costs and jobsite performance.

Features & Benefits

Fuel system

The pressurized fuel system improves fuel injector operation, and the fuel recirculation system helps prevent fuel gelling in cold climates – so you can maintain maximum productivity


Operators get maximum support from a sculpted mechanicalsuspension high-back seat. Seat has 318 mm (12.5 in.) of travel, sliding together or independent of the joystick console.

Climate-Control system

Automatic, high-velocity bi-level climate-control system with automotive-style adjustable louvers helps keep the glass clear, the cab comfortable and the operator productive.


Multi-language LCD monitor and rotary dial provide intuitive access to machine info and functions. Just turn and tap to select work modes, monitor maintenance intervals, check diagnostic codes and set cab temperature.


Get unobstructed all-around visibility thanks to a new hood design paired with a wide expanse of front, side, and overhead glass and mirrors.


Thick-plate single-sheet mainframe, box-section track frames and industry-exclusive double-seal swing bearing deliver rock-solid durability.


A redesigned boom and arm and larger hydraulic pumps make the ZX300LC-6 even tougher.


Oil-impregnated bushings enhance durability and extend lube intervals to 500 hours for the arm-and-boom joint and 100 hours for the bucket joint.


Upperstructure handrails provide added safety when servicing the engine compartment, and a larger hood gives you better engine accessibility


Auto-idle, which reduces engine speed when hydraulics aren’t in use, and auto-shutdown contribute to fuel efficiency.


Key Specifications
Net Power 132 kW (177 hp)
Operating Weight 25 260 kg (55,689 lb.)
Max Dig Reach 10.91 m (35 ft. 10 in.)
Max Dig Depth 7.61 m (25 ft.)
