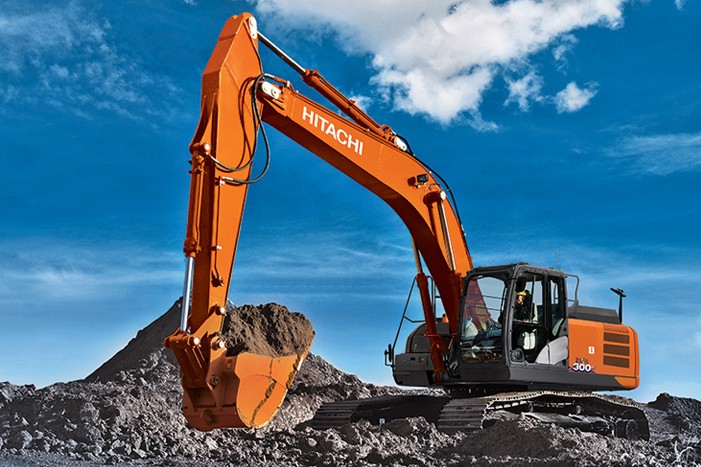

Hitachi Construction Machinery Corporation - ZX300LC-6 Excavators

The ZX300LC-6 is one of the newest models in Hitachi’s Dash-6 lineup. Loaded with numerous customer-driven enhancements, Dash-6 Excavators are purpose-built to deliver more efficiency, reliability, and durability. Front and center is a new, fuel-efficient EPA Final Tier 4 (FT4)/EU Stage IV Isuzu engine that meets rigid emission standards – no diesel particulate filter needed. Plus, you’ll get generous swing torque, dig force, and lift capacity. The spacious cab is designed for operator comfort and productivity, and standard upper-structure handrails provide added safety and accessibility.

The ZX300LC-6 comes standard equipped with three years of ZXLink™ Ultimate, giving you 24/7 online access to machine location, health, utilization, fuel consumption, and other valuable information – so you can better understand costs and jobsite performance.

Features & Benefits

Comfort

Operators get maximum support from a sculpted mechanicalsuspension high-back seat. Seat has 318 mm (12.5 in.) of travel, sliding together or independent of the joystick console. For even more comfort, opt for the air-suspension heated seat.

Fuel system

The pressurized fuel system improves fuel injector operation, and the fuel recirculation system helps prevent fuel gelling in cold climates – so you can maintain maximum productivity.

Operation

It’s not always about brute force. Unmatched metering and smooth multifunction operation provide plenty of finesse and precision, too.

Climate-Control system

Automatic, high-velocity bi-level climate-control system with automotive-style adjustable louvers helps keep the glass clear, the cab comfortable and the operator productive.

LCD monitor

Multi-language LCD monitor and rotary dial provide intuitive access to machine info and functions. Just turn and tap to select work modes, monitor maintenance intervals, check diagnostic codes and set cab temperature.

DURABILITY

Thick-plate single-sheet mainframe, box-section track frames and industry-exclusive double-seal swing bearing deliver rock-solid durability.

Bushings

Oil-impregnated bushings enhance durability and extend lube intervals to 500 hours for the arm-and-boom joint and 100 hours for the bucket joint.

Auto-Idle

Auto-idle, which reduces engine speed when hydraulics aren’t in use, and auto-shutdown contribute to fuel efficiency.

Specs

Key Specifications
Net Power 186 kW (249 hp)
Operating Weight 29 200 kg (64,375 lb.)
Max Dig Reach 11.27 m (37 ft.)
Max Dig Depth 7.87 m (25 ft. 10 in.)
