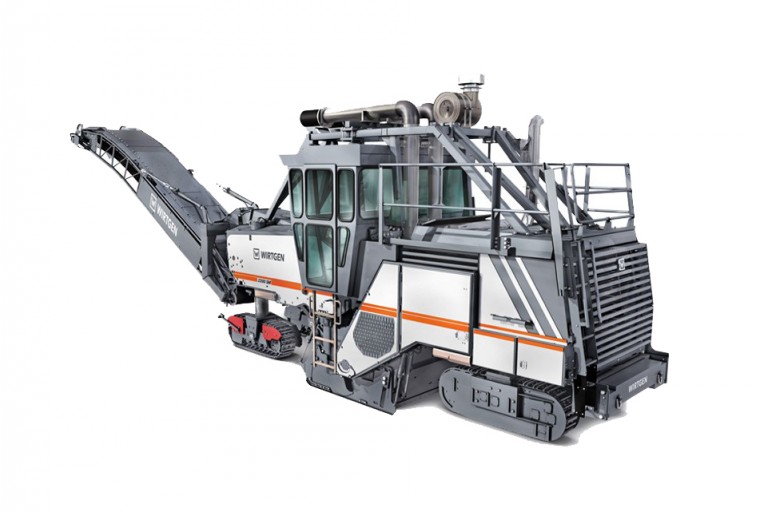

Wirtgen America, Inc. - 2200 SM Surface Miners

Surface miner with mechanically driven cutting drum for mining coal and useful minerals with unconfined compressive strengths of up to 50 MPa. The miner can optionally be equipped for loading the mined material via a front-loading conveyor system with slewing and height-adjustable discharge conveyor or for working in windrowing mode.


Key Specifications
Cutting width 2,200 mm
Cutting depth (conveyor system) 0 - 300 mm
Cutting depth (windrowing) 0 - 250 mm
Engine power 708 kW / 963 PS
Emission standards no EC regulation / US Tier 2
Operating weight, CE 52,560 - 53,910 kg
