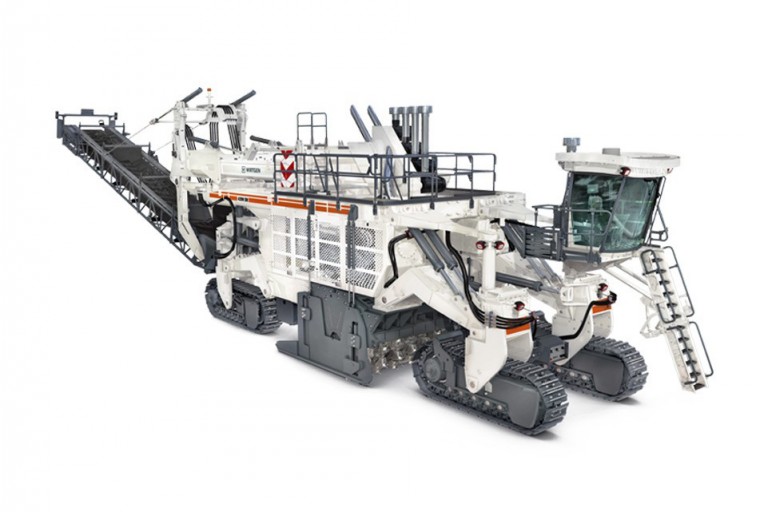

Wirtgen America, Inc. - 4200 SM Surface Miners

Surface miner with mechanically driven cutting drum for the selective mining of coal and iron ore as well as for cutting soft rock of up to 35 MPa. The surface miner is equipped with individually height-adjustable crawler tracks in two different designs and a two-stage conveyor system.


Key Specifications
Cutting width 4,200 mm
Cutting depth (conveyor system) 0 - 830 mm
Engine power 1,194 kW / 1,623 PS
Emission standards USA / Canada US Tier 2, outside US Tier 0
Operating weight, CE 204,300 kg
