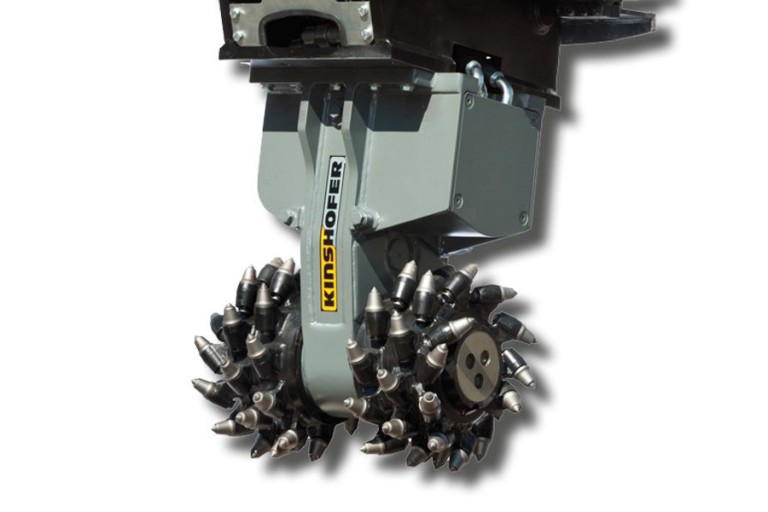

Kinshofer North America - WS-Cutters Drum Cutters

The cutters with robust spur gearing are driven by high torque motors. In addition, they are equipped with a gear reduction to increase the cutting force. The optimal selection of drum and chisel guarantees high performance for loosening of material and reduces wear.The best suited components for your task will provide optimum penetration into the rock at low vibration and noise levels.Underwater operation in up to 25m water depth is no problem thanks to the heavy duty sealing system!

Specs

Key Specifications: 7 models
Excavator Operating Weight From 2 - 8t to 40 - 60t
Weight of Cutter 250 kg to 2800 kg
Nominal power max. 18/22 kW - 140 kW
Flow min. / max. 30 - 65 l/min to 360 - 550 l/min
