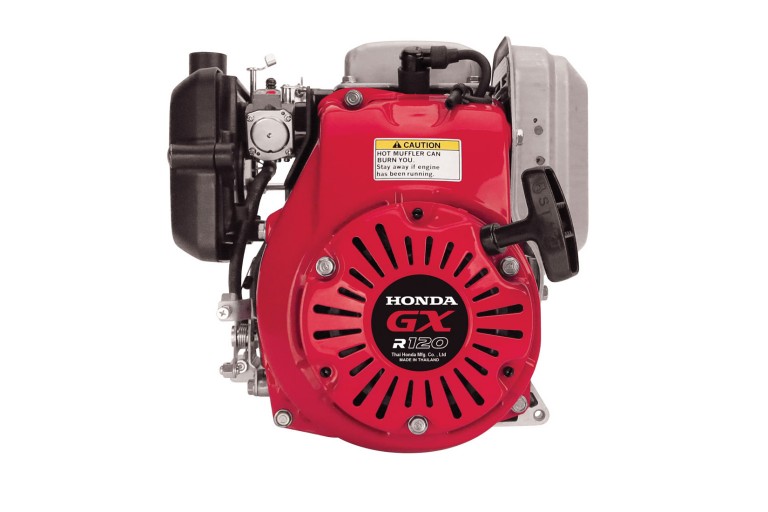

Honda Engines - GXR120 Crank Shaft Engines

GXR120 is uniquely developed as an ideal source of power for rammers - equipment used to compact soil or other granular material. With superb durability and reliability for these heavy-duty applications, the GXR120 is more than ready to meet the high demands required.


Key Specifications
Engine Type Air-cooled 4-stroke OHC
Bore x Stroke 60 X 43 mm
Displacement 121 cm3
Net Power Output 3.6 HP (2.7 kW) @ 3,600 rpm
Net Torque 5.5 lb-ft (7.5 Nm) @ 2,500 rpm
Dry Weight 22.9 lbs. (10.4 kg)
