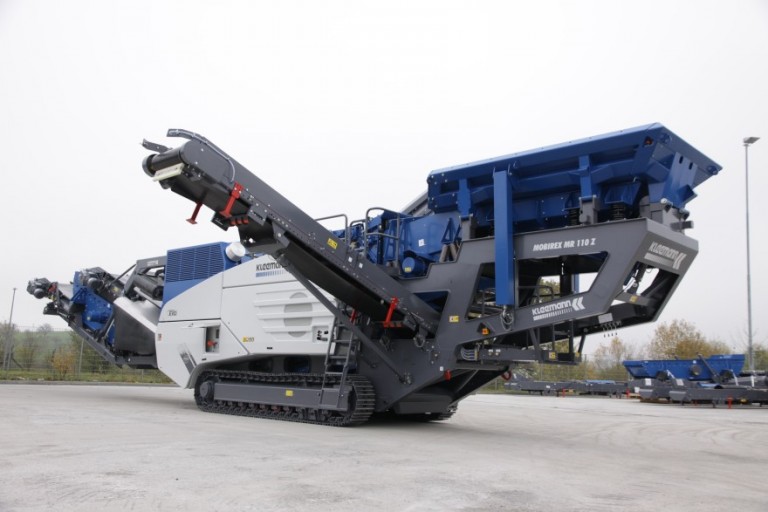

Contractor Line with an additional benefit in terms of economy and operation safety. Universally adaptable plant which is suited for processing both blasted natural stone, asphalt and demolition waste as well as producing a first-class end quality product. Despite its comparatively "small" crusher inlet size of 44'' x 32'' (1,100 x 800 mm), it achieves outputs, that up to now, were only known to be achievable with larger crushing plants. Maximum input capacities of 386 US t /h (350 t/h) can easily be attained. In primary screening, an independent double-deck pre screen is applied. For a classified end product, the plant can be fitted with a high performance final screen.
|Feed capacity up to approx.||386 US t/h|
|Feed size max.||26" x 24"|
|Feed height (with extension)||13' 8" (14' 11")|
|Hopper capacity (with extension)||5.2 yd³ (9.2 yd³)|
|Crusher inlet width x height||44" x 32"|
|Drive concept||diesel-direct-electric drive|
