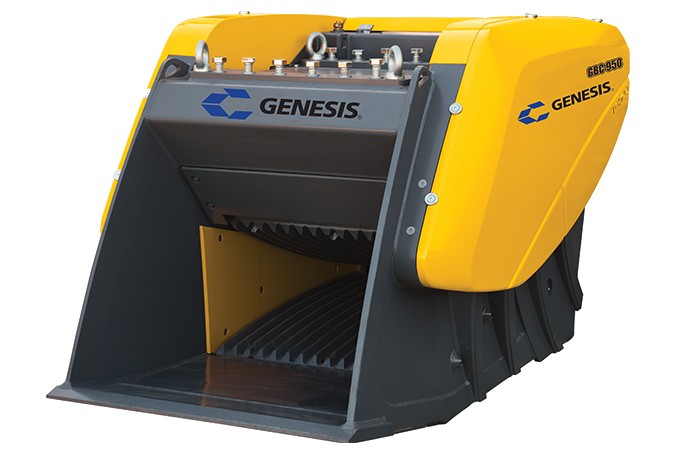

GBC Series Bucket Crushers

The Genesis Bucket Crusher (GBC) features an aggressive figure-eight crushing motion that produces high quality cubical product. Extra-large jaw plates provide optimal performance and longer life, and the GBC is built for durability with a large and robust casted jaw stock and Hardox frame. The replaceable cheek plates and toggle seat and centralized lubrication system minimize maintenance.

Specs

Key Specifications
Load Volume 0.67 - 2 yd3
Weight 3,750 - 12,610 lbs.
Length 76 - 101 in.
Width 43 - 72 in.
Height 51 - 61 in.
Intake Opening 26 x 20 - 49 x 22 in.
Min.-Max. Jaw Opening 1 - 4 to 1 - 4.75 in.
Min. Excavator Weight 22,050 - 77,160 lbs.
