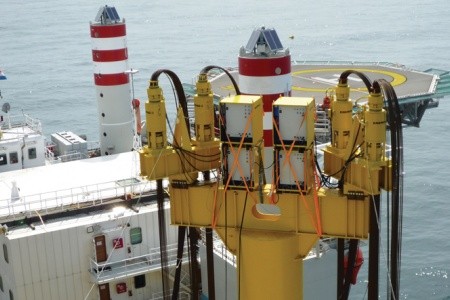

The strand jack lifting technique originates from the concrete post tensioning principle. A strand jack can be considered a linear winch. In a strand jack, a bundle of steel cables or strands are guided through a hydraulic cylinder; above and below the cylinder are anchor systems with wedges that grip the strand bundle. By stroking the cylinder in and out while the grips are engaged in the anchors, a lifting or lowering movement is achieved
The motion of the cylinders is driven by hydraulic power packs. They can be electric or diesel powered. Our sophisticated SCC software program synchronizes the motion of the strand jacks and adjusts the motion to the loads per lifting point.
|Strand Diameter||15,7 mm (.62") - 18 mm (.71 ")|
|Capacity||15 ton (150 kN) - 1250 (12,500 kN)|
|No. of Strands||3 - 84|
|Stroke||250 mm - 600 mm|
|Weight||100 kg - 830 kg|
