Enerpac - SPMT600 Hydraulic Lifting Systems

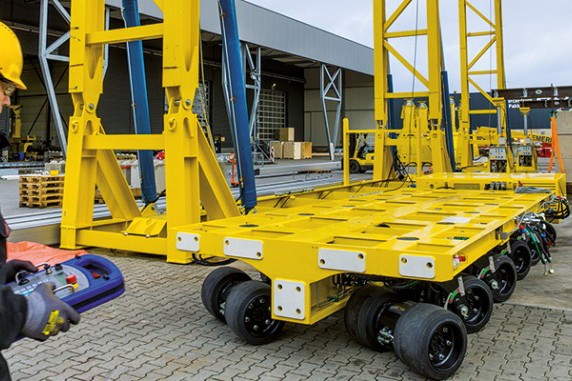

The Enerpac Self-Propelled Modular Transporter (SPMT) features a minimized height and slim design, which makes it very easy to operate in confined spaces. Each wheel unit has a steering function as well as a lifting cylinder at its disposal. Wheel propulsion is established by wheel drives

The SPMT is operated by the Intelli-Drive Remote Controller. This remote controller can be used both hard wired and wireless (based on radio frequency). The SPMT is a modular system comprised of trailers with 3 axle lines each and diesel hydraulic power units (HPU). Depending on the model number, the trailers and HPUs can be configured to a maximum of 4 trailers in 2 rows (4x2) or 6 trailers in 2 rows (6x2).


Key Specifications
Capacity (per trailer) 67 tons
Max Configuration (trailer in rows) 4x2 - 6x2
Overall Length 15 - 17 ft
Lifting Stroke 15.1"
Wt. HPU 5512 - 7,501 lbs
Wt. (per trailer) 17,367 - 18,298 lbs
