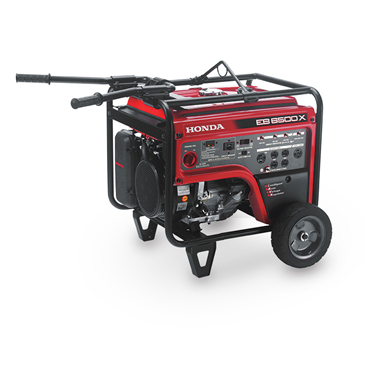

Honda Engines - EB6500 Generators

The Honda premium industrial series EB generators are feature-rich and designed for the rigours of daily commercial usage and rental applications. The EB6500XKC has manual start with automatic decompression for easy starts every time. Honda's exclusive iAVR (Intelligent Auto Voltage Regulation) system delivers stable power and provides extra wattage for special conditions (7000 watts for 10 seconds to start larger equipment). A voltage Selector Switch allows both 120 V and 240 V output, or total output to a single 120 V outlet for powering devices with larger wattage requirements, and all duplex receptacles are GFCI (Ground Fault Circuit Interrupter) protected. The EB6500XKC has a large 24 litre tank for extended running time and a standard Hanger kit/Lifting eye for easier moving around the job site. Safety and protection features include a full tubular steel frame with isolation mounts, Oil Alert™ system, USDA-Qualified Spark Arrestor/Muffler and a full 3 year residential and commercial warranty.


Key Specifications
Maximum AC output 6500 watts
Max. Rated AC Amperage @ 120 V/240 V 45.8/22.9 (58.3/29.2 for 10 sec. iAVR)
Engine Type Honda iGX390T2 OHV, 4-stroke, air-cooled
Dry Weight 97.2 kg (214.3 lb.)
Displacement 389 cc
