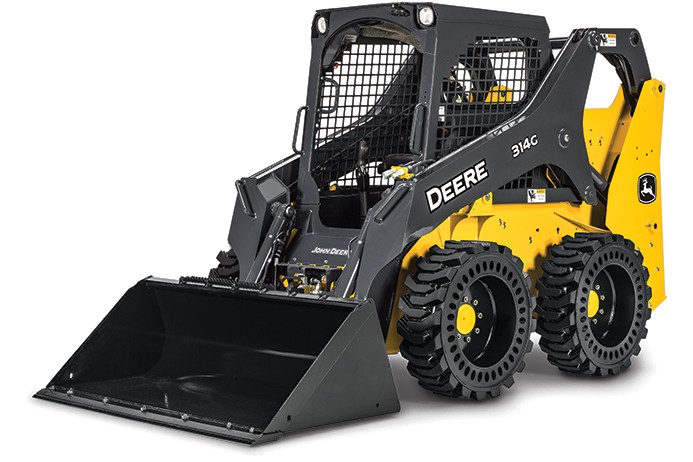

Incorporating many of the same durability and reliability features found on our larger machines, the 314G is as tough as they come. The redesigned vertical-lift boom rises up to 10 ft. to precisely places pallets. A smooth-running turbocharged 2.1-L EPA Final Tier 4 (FT4)/EU Stage IV diesel engine meets rigid emission standards and packs plenty of power and torque. Keep downtime down with sealed electrical connectors, O-ring face-seal hydraulic fittings larger coolers, and extended service intervals. Standard automatic shutdown prevents overheating or low fluids from ruining more of your day. The 314G can also get you over eight hours of run time between fuel refills depending on your application and machine use.

Specs

Key Specifications
Net Power 35.8 kW (48 hp) @ 2,600 rpm
Tipping Load 1598 kg (3,520 lb.)
Rated Operating Capacity 799 kg (1,760 lb.)
Bucket Breakout Force 2270 kg (5,000 lb.)
