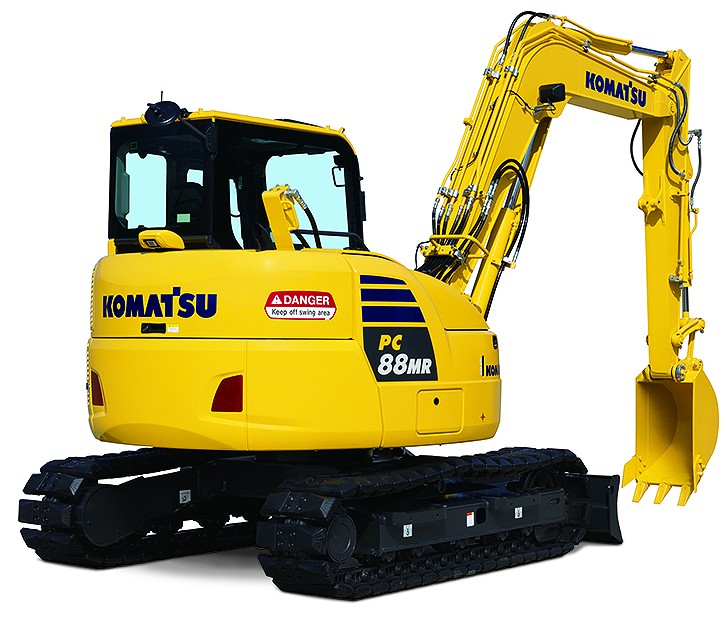

Komatsu America Corp. - PC88MR-10 Excavators

The PC88MR-10 is a link between minis and mid-size excavators. The PC88MR-10 has a swing boom, tight tail swing, three track options and backfill blade like a mini but is built to have the reliability and durability of larger excavators.

Features & Benefits

Efficient Hydraulic System

The PC88MR-10 uses a Closed Center Load Sensing (CLSS) hydraulic system that improves fuel efficiency and provides quick response to the operator's demands.

True Tight Tail Performance

The versatile PC88MR-10 can fit into areas where a conventional machine cannot. The contoured cab design and convex sliding door allow the cab to swing within the same turning radius as the counterweight.

Swing Boom

The swing boom allows the PC88MR-10 to work where a standard boom excavator could not.

Newly Designed Wide Spacious Cab

The newly designed wide spacious cab features a high back, fully adjustable seat with a reclining backrest. The console and seat have an integrated design so that they move together and provide additional comfort for the operator.

Pattern Change Value Standard

A pattern change valve is conveniently located below the cab, making switching from excavator controls to backhoe controls quick and easy.

Peace of Mind

Spacious cab with excellent visibility, neutral engine start system, thermal and fan guards, low emission Komatsu engine with dual element air cleaner, One key operates the ignition and all machine locks

Service and Maintenance

• Wide opening engine hood and side covers • Side-by-side radiator and oil cooler are easily inspected • Extended lubrication intervals • Ground level maintenance • Easy access to engine oil filter, engine main fuel filter, and fuel drain valve

KOMTRAX equipped

KOMTRAX® equipped machines can send location, SMR and operation maps to a secure website utilizing wireless technology. Machines also relay error codes, cautions, maintenance items, fuel levels, and much more.


Key Specifications
ISO 9249 / SAE J1349 / Net Power 48.8 kW 65.5 HP
Operating Weight w/Track Shoes - 450 mm 18" (Road liner) 8720 kg 19,224 lb
Operating Weight w/Track Shoes - 450 mm 18" (Triple grouser) 8580 kg 18,916 lb
Operating Weight w/Track Shoes - 600 mm 24" (Triple grouser) 8750 kg 19,290 lb
Operating Weight w/Track Shoes - 450 mm 18" (Rubber shoe) 8500 kg 18,739 lb
