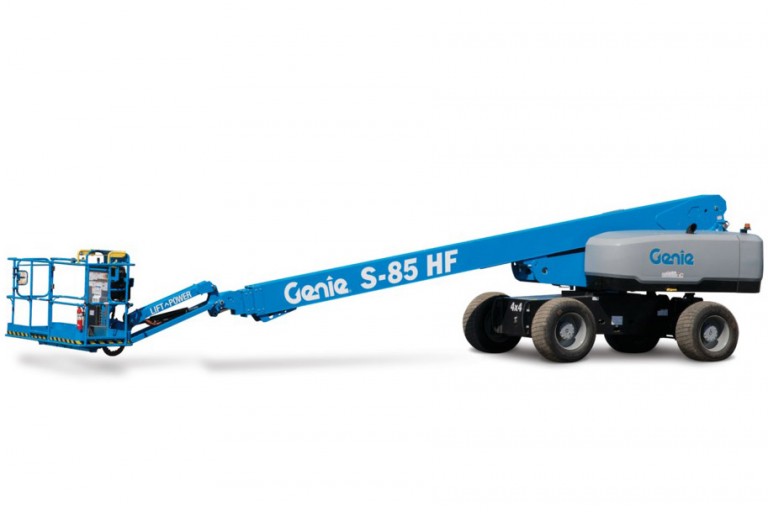

S-80 HF and S-85 HF
Genie - A Terex Brand
The Genie® S®-80 HF and S-85 HF high float telescopic booms are designed to perform heavy-lifting tasks in sensitive turf conditions, such as sand and turf ground conditions. Engineered to "float" on soft or delicate surfaces, the Genie S-80 and S-85 HF booms protect softer surfaces during operation that could be damaged by the more aggressive tread on regular rough terrain tires.
Specs
| Max Platform Height | S-80 HF: 80 ft / S-85 HF: 85 ft | S-80 HF: 24.38 m / S-85 HF: 25.91 m |
| Max Horizontal Reach | S-80 HF: 68 ft 6 in / S-85 HF: 72 ft 6 in | S-80 HF: 20.88 m / S-85 HF: 22.10 m |
| Below Ground Reach | S-80 HF: 5 ft 6 in / S-85 HF: 8 ft 8 in | S-80 HF: 1.68m / S-85 HF: 2.64 m |
| Platform Capacity | 600 lb Unrestricted, 1000 lb Restricted | 272 kg Unrestricted, 454 kg Restricted |
| Machine Width and Length | S-80 HF: 8ft 6 in, 37 ft 1 in / S-85 HF: 8 ft 6 in, 40 ft 7 in | S-80 HF: 2.59 m, 11.23 m / S-85 HF: 2.59 m, 12.37 m |
